Jomar 105-206 1-1/4 S501 C X C Check Valve

Product Description

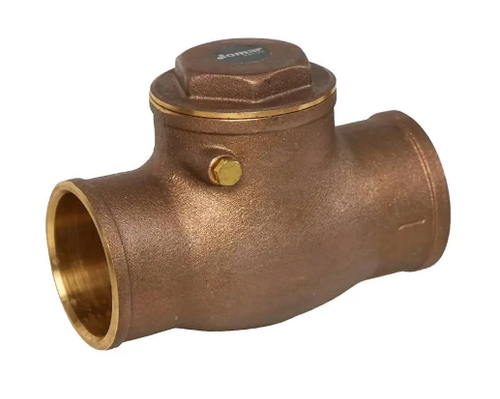

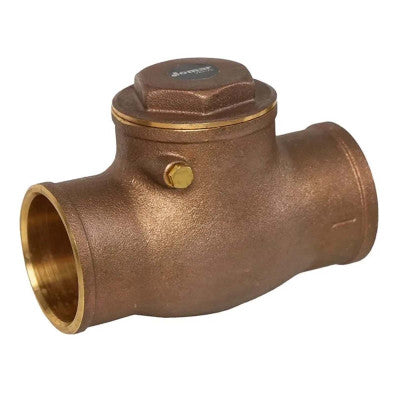

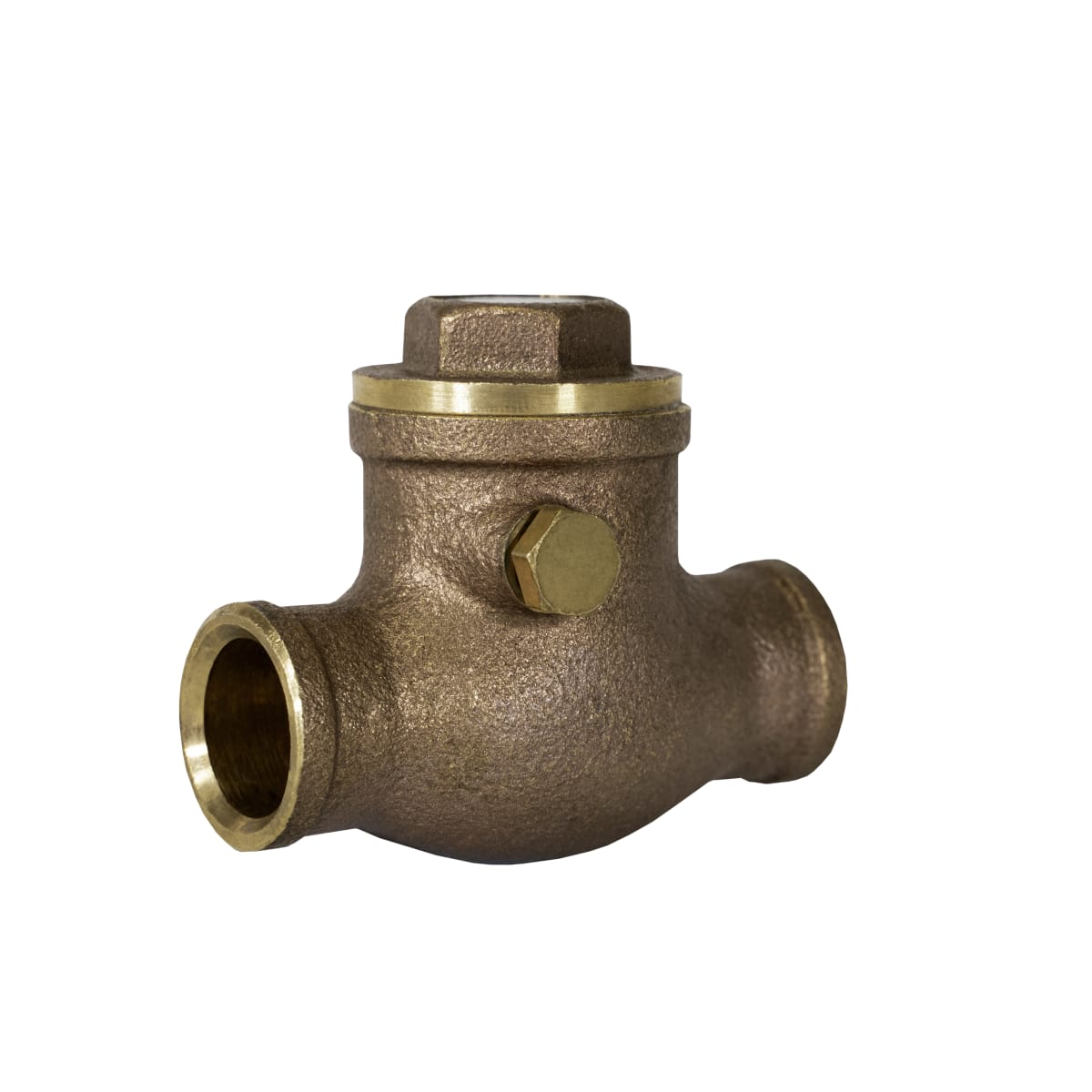

The JOMAR 105-206 is a horizontal swing check valve with a compression (solder) connection. It is part of the S-501 series and has a pressure rating of 200 PSI (WOG). The valve features a cast brass body and a forged brass disc trim material. Suitable for residential and commercial applications.

• Horizontal Swing Check Valve
• Compression (Solder) Connection
• 200 PSI (WOG) Pressure Rating

Product Highlights

The JOMAR 105-206 check valve is designed for horizontal applications, ensuring reliable backflow prevention in various plumbing systems.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 105-206

Technical Specifications

• Series/Model: S-501
• Nominal Size: 1-1/4 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 200 PSI (WOG)
• Body Material: Cast Brass
• Trim Material: Forged Brass Disc
• Width: 4.37 IN
• Lead Free: No
• Type: Swing Check Valve
• Material: Brass
• Item Number: 105-206
• Brand: Jomar
• Valve: Horizontal Swing Check Valve
• Disc Material: Brass
• Inlet to Outlet Length: 4.16 in
• Media: Gas, Oil, Water
• Temperature Rating: -10 to 180 deg F
• Top to Inlet Center: 2.01 in
