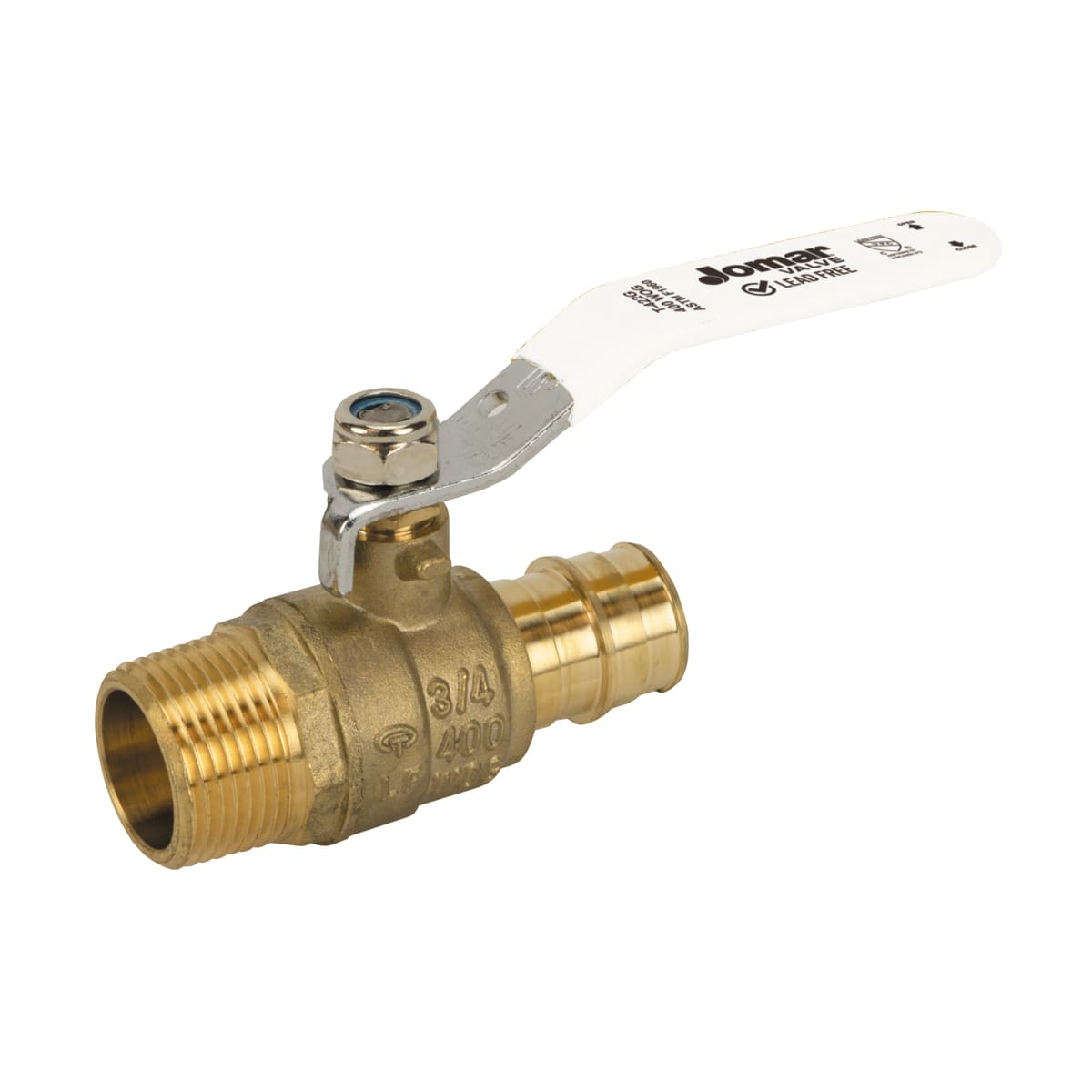

JOMAR 104-555PG 2 Piece, Threaded Male x Expansion Pex Connection, 400 WOG

Product Description

The JOMAR 104-555PG is a two-piece valve designed for threaded male to expansion PEX connections. Rated for 400 WOG, this valve handles a temperature range of up to 200 degrees Fahrenheit. This component is durable, with a brass body and stainless steel ball.

• Designed for threaded male to expansion PEX connections
• Rated for 400 WOG with a temperature rating of 200 degrees Fahrenheit
• Constructed with brass and stainless steel materials

Product Highlights

This valve provides reliable water flow control in various piping systems.

Product Information

Standard Information

• Brand: JOMAR
• MPN: 104-555PG

Technical Specifications

• Type: 2-Piece
• Ball Material: 304 Stainless Steel
• Body Material: Brass
• Nominal Size: 1 in
• End Style: FNPT x Expansion PEX
• Pressure Rating: 400 psi WOG
• Temperature Rating: 200 deg F
• Inlet to Outlet Length: 3.33 in
• Top to Inlet Center: 2.09 in
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Wetted Surfaces Lead Content: Less than 0.25%
