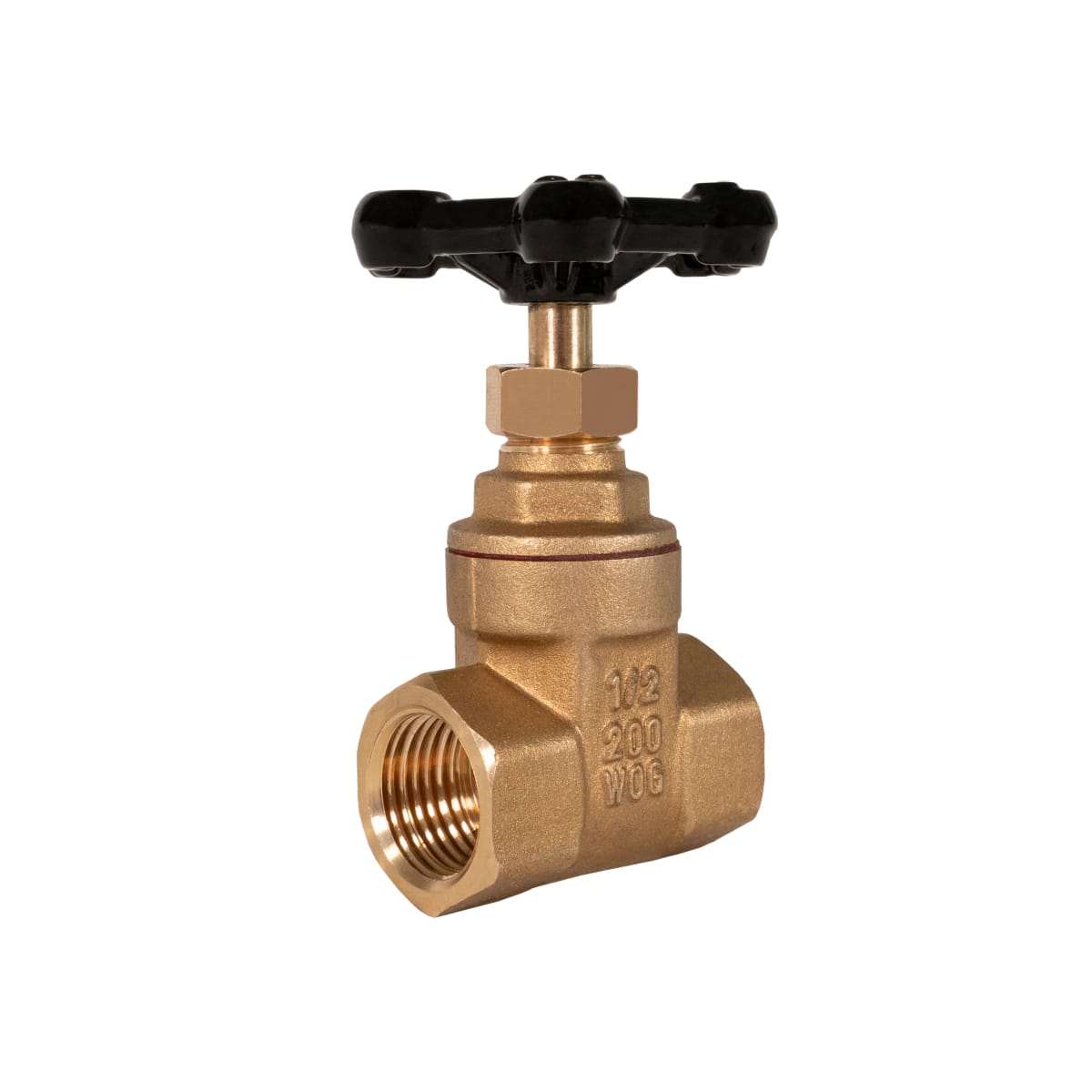

Jomar 103-308 Regular Brass Gate Valve, Non-rising Stem, Threaded Connection, 200 WOG

Product Description

The Jomar 103-308 is a regular brass gate valve designed for efficient flow control in plumbing systems. This valve features a non-rising stem and threaded connections, making it suitable for various applications. It operates at a pressure rating of two hundred psi WOG, ensuring reliability under normal conditions.

• Non-rising stem design
• Threaded FNPT connections
• Pressure rated for 200 WOG

Product Highlights

This valve is ideal for use in water and gas lines, providing a solid, leak-proof seal when fully closed. Its handwheel actuator allows for easy manual operation and maintenance.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 103-308

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: FNPT
• Hand Wheel Diameter: 3.54 inches
• Inlet to Outlet Length: 2.83 inches
• Nominal Size: 2 inches
• Port Type: Regular
• Pressure Rating: 200 psi WOG
• Softgoods Material: Buna-N Gland Packing
• Top to Inlet Center: 5.9 inches
• Trim Material: Brass/Cast Brass
• Type: Non-Rising Stem
