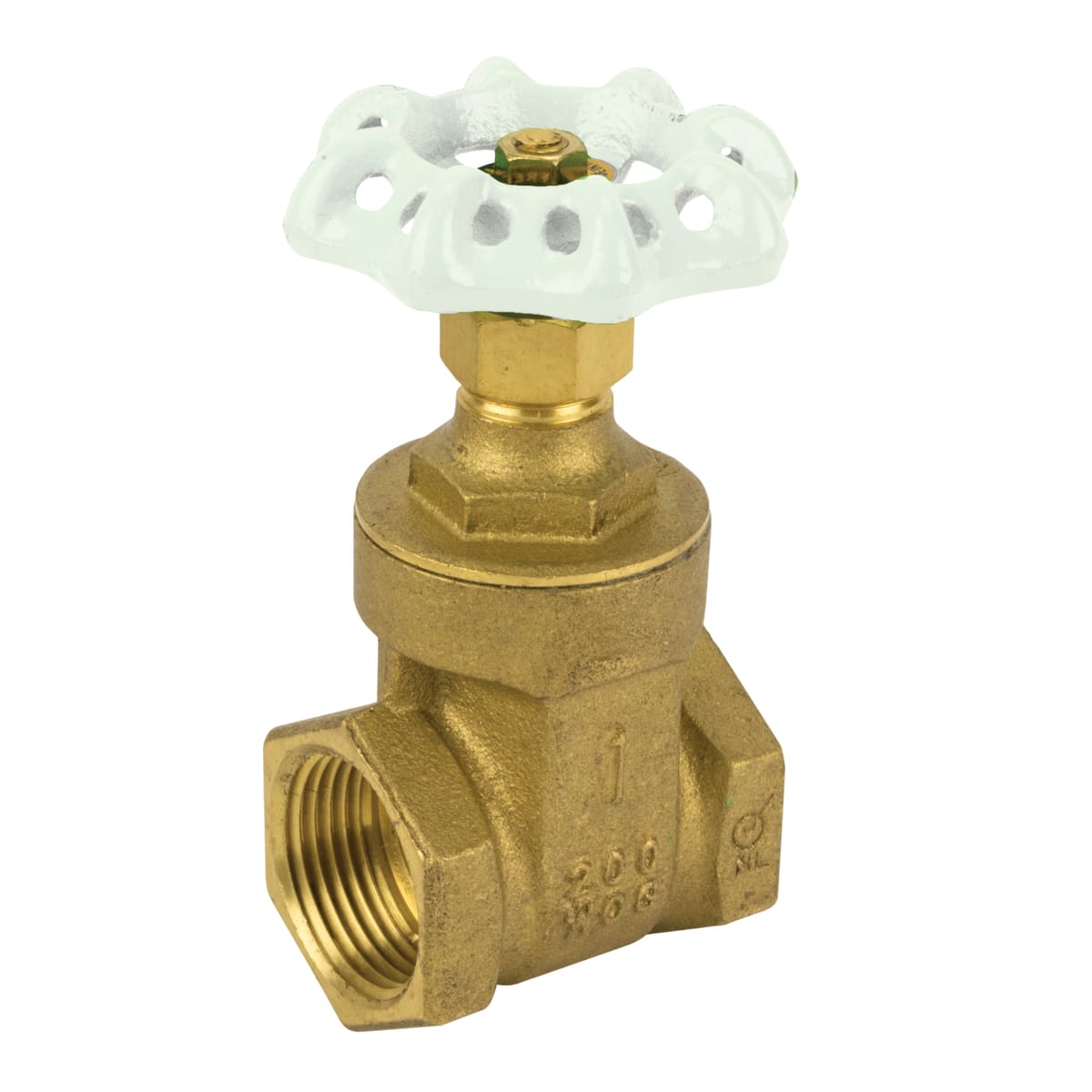

JOMAR 103-303G Gate Valve, Non-rising Stem, Threaded Connection, 200 WOG

Product Description

The JOMAR Gate Valve, MPN 103-303G, is designed for use in plumbing systems. It features a non-rising stem and a threaded connection suitable for 200 WOG. The valve has a cast brass body, making it durable for long-term use. This product is ideal for applications that require reliable flow control.

• Non-rising stem design
• Threaded connection for easy installation
• 200 psi WOG pressure rating

Product Highlights

The JOMAR Gate Valve allows for effective isolation of flow in piping systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527294418

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: FNPT
• Hand Wheel Diameter: 2.13 inches
• Inlet to Outlet Length: 1.69 inches
• Nominal Size: 1/2 inches
• Pressure Rating: 200 psi WOG
• Softgoods Material: Buna-N Gland Packing
• Top to Inlet Center: 2.84 inches
• Trim Material: Brass/Cast Brass
• Type: Non-Rising Stem
