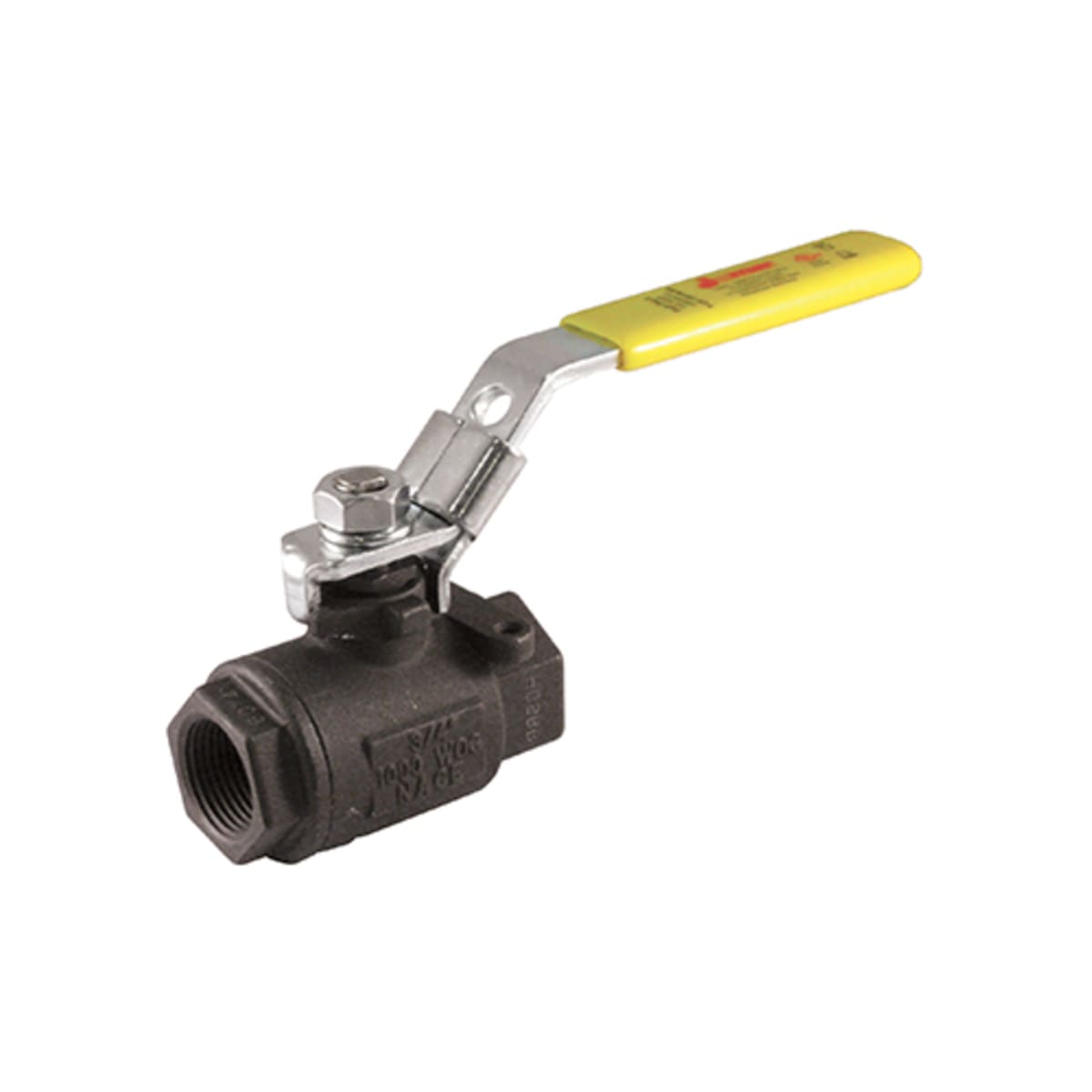

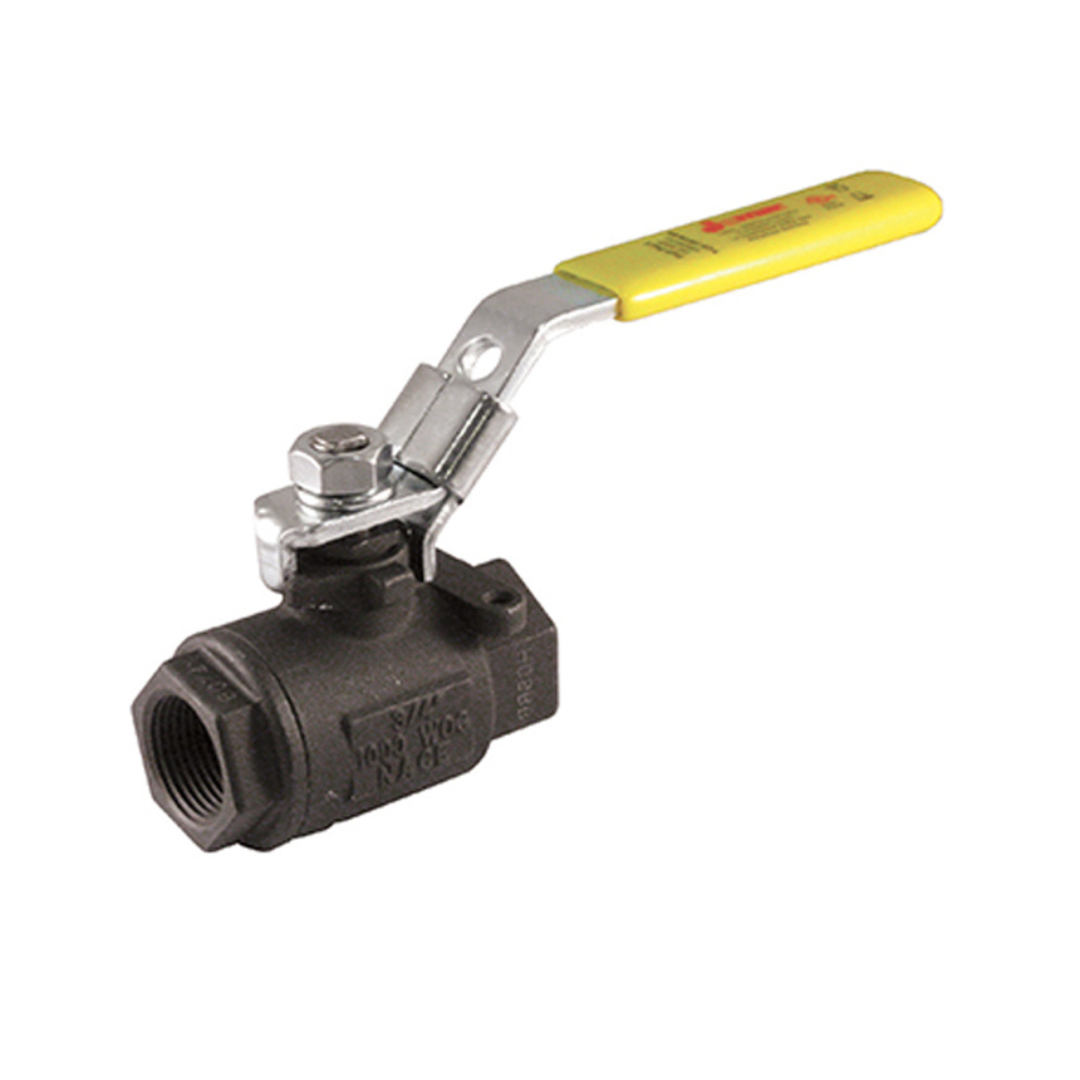

Jomar 100-975 Ball Valve 1 IN

Product Description

The JOMAR 100-975 is a 2-piece full-port ball valve with a 1-inch nominal size and FNPT connection. It features a carbon steel body and a locking lever handle. Suitable for applications requiring a reliable shutoff with a pressure rating of 1000 PSI (WOG) and 150 PSI (SWP).

• 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Carbon Steel Body Material

Product Highlights

Full port ball valve with locking lever handle and carbon steel body.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-975

Technical Specifications

• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 1000 PSI (WOG), 150 PSI (SWP)
• Body Material: Carbon Steel
• Handle Operator Type: Locking Lever Handle
• Handle Material: Carbon Steel
• Stem Material: 316 Stainless Steel
• Trim Material: Stainless Steel Ball
• Packing Material: RPTFE
• Gland Material: Carbon Steel
• Seat Material: TFM 1600 Hostaflon®
• Seal Material: TFM 1600 Hostaflon®
• Material Standard: Body: Grade WCB, Handle: ASTM A283, Ball: Grade CF8M
• Material Specification: Gland: AISI 1045
• Industry Standards: C/US UL Listed, MSS-SP-110, MSS-SP-61, MSS-SP-82, ANSI B16.34, API 598, NACE Certified
• Width: 3.54 IN
• Lead Free: No
• Other Physical Dimension: 2.96 IN Inlet Center To Top Of Handle, 5.73 IN Handle Length
• Torque Rating: 70 IN-LB
• Ball Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 3.54 in
• Port Type: Full
