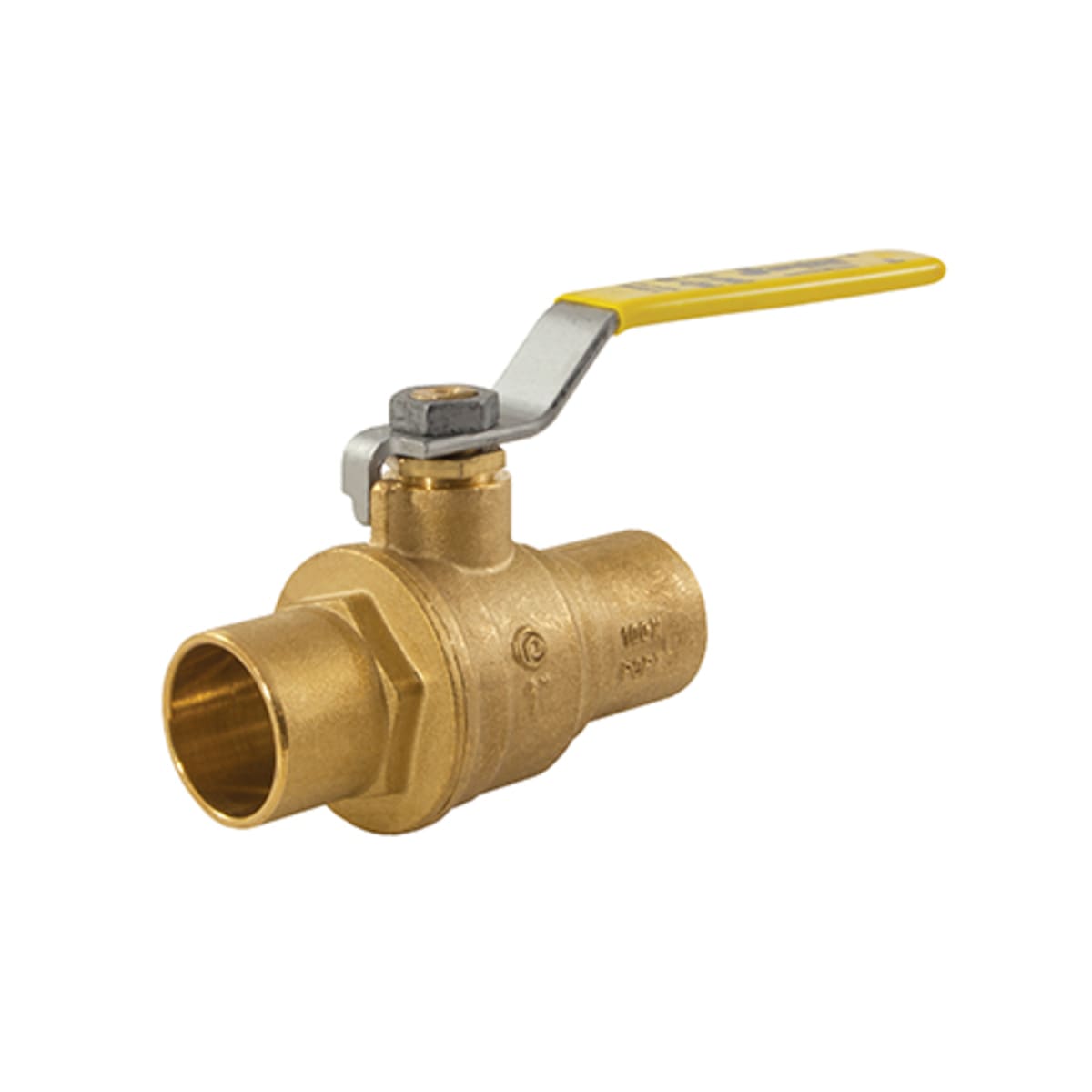

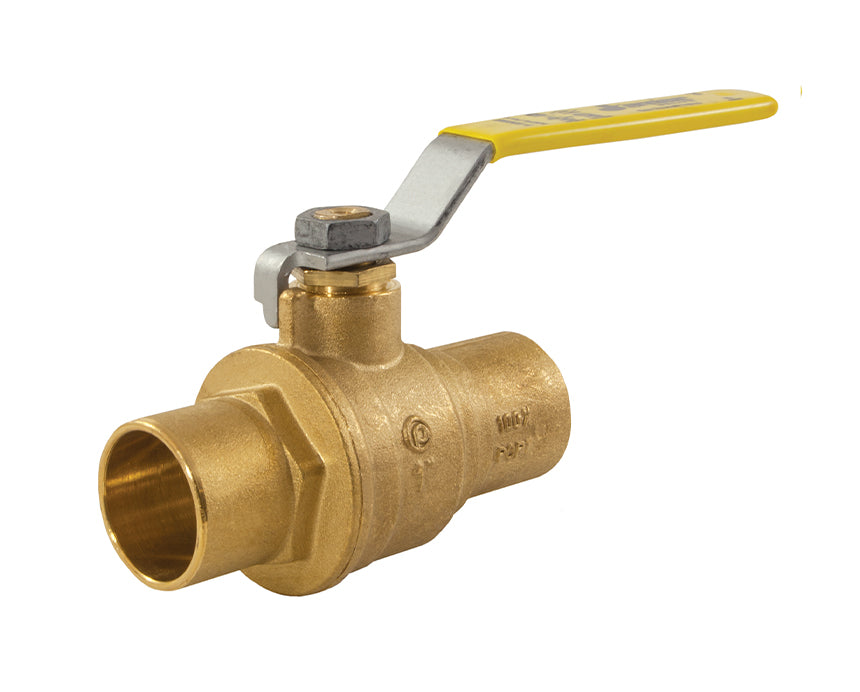

Jomar 100-806 Brass c x c ball valve 1-1/4 in

Product Description

The JOMAR 100-806 is a 2-Piece Full-Port Ball Valve with a nominal size of 1-1/4 IN and a compression (solder) connection. It features a brass body, a Geomet® plated steel handle, and a brass stem. The valve is pressure rated to 500 PSI (WOG) and 150 PSI (SWP).

• 2-Piece Full-Port Ball Valve
• Compression (Solder) Connection
• Brass Body Material

Product Highlights

This ball valve is suitable for various plumbing and industrial applications requiring a reliable shut-off mechanism. It meets UL Listed and MSS-SP-110 industry standards.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-806
• Country of Origin: Italy

Technical Specifications

• Series/Model: Model S-100NE
• Nominal Size: 1-1/4 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 500 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Material: Geomet® Plated Steel
• Stem Material: Brass
• Trim Material: Brass Stem and Hostaflon® TFM 1600 Seat
• Packing Material: TFM 1600 Hostaflon®
• Gland Material: Brass
• Seat Material: TFM 1600 Hostaflon®
• Seal Material: Teflon
• Material Specification: Body And Ball: CW617N, Stem And Gland: CW614N
• Industry Standards: UL Listed, MSS-SP-110
• Width: 4-1/2 IN
• Lead Free: No
• Other Physical Dimension: 2.66 IN Inlet Center To Top Of Handle, 4-3/4 IN Handle Length
• Flow Co-Efficient (Cv): 112.52
• Ball Material: TEA Coated Brass
• Port Type: Full
• Softgoods Material: Hostaflon® TFM/FKM
• Type: 2-Piece
• WOG: 600
• Port: Full Port
• Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 4-1/2 in
• Top to Inlet Center: 2.66 in
• Description: 1-1/4 in. Full Port, 2 Piece, Solder Connection, 600 WOG
