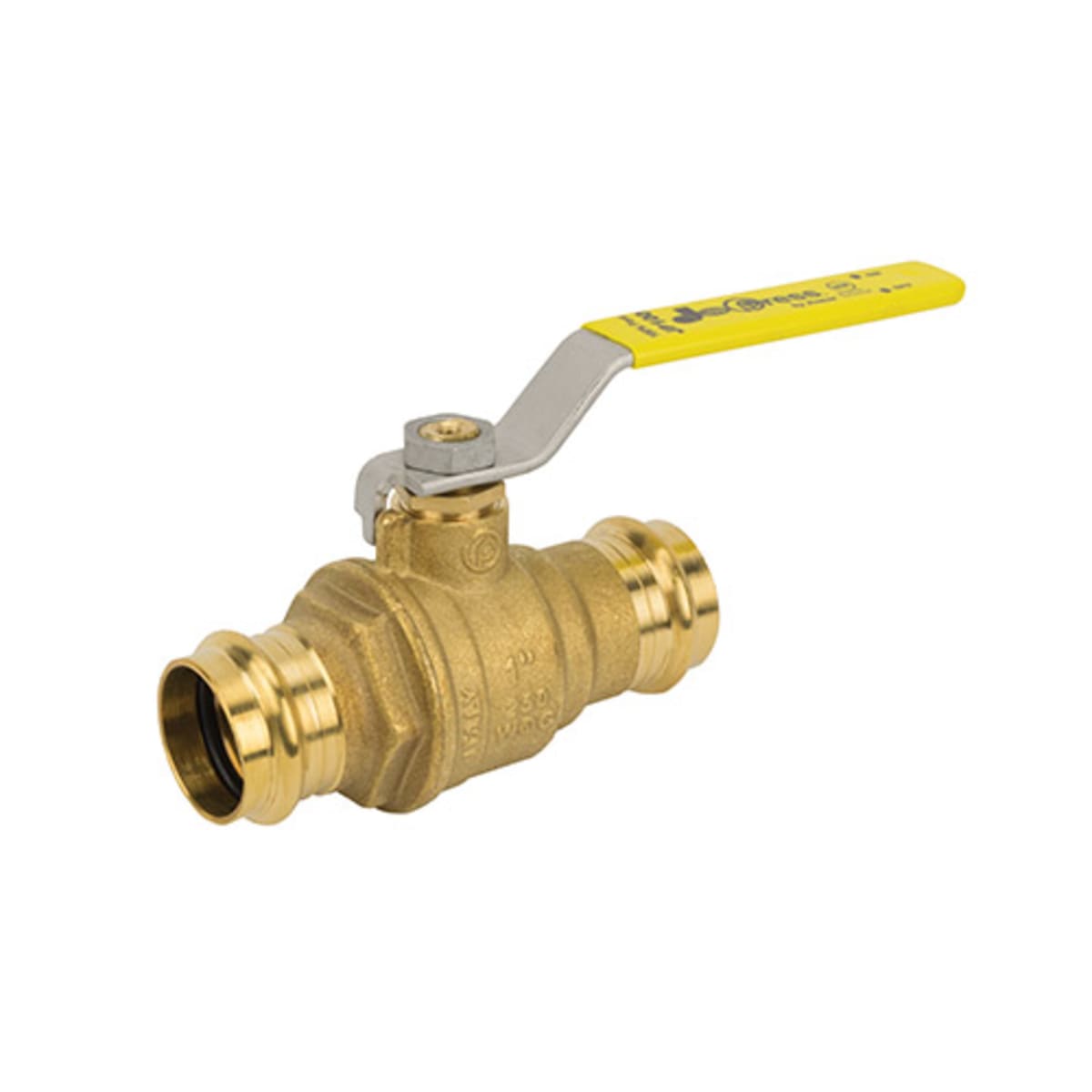

JOMAR 100-206 Full Port, 2 Piece, Press Connection, 250 WOG

Product Description

The JOMAR 100-206 is a full port, two-piece ball valve designed for press connections. It has a nominal size of one and one-fourth inches and is rated for a maximum pressure of two hundred fifty psi. This valve operates effectively in media such as gas, oil, and water. It features a lever operated actuator and a brass ball for durability.

• Configured for 250 WOG
• EPDM softgoods for reliable sealing
• Can handle temperatures up to 250 degrees Fahrenheit

Product Highlights

This valve offers robust construction and a blow-out/leak-proof feature. It is 100% leak tested to ensure reliability for various applications including plumbing and HVAC systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-206

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 4.8 inches
• Media: Gas/Oil/Water
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.23 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Series: JP-100PxP
• Softgoods Material: EPDM
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 2.59 inches
• Trim Material: Brass Stem and TFM Seat
• Type: 2-Piece
