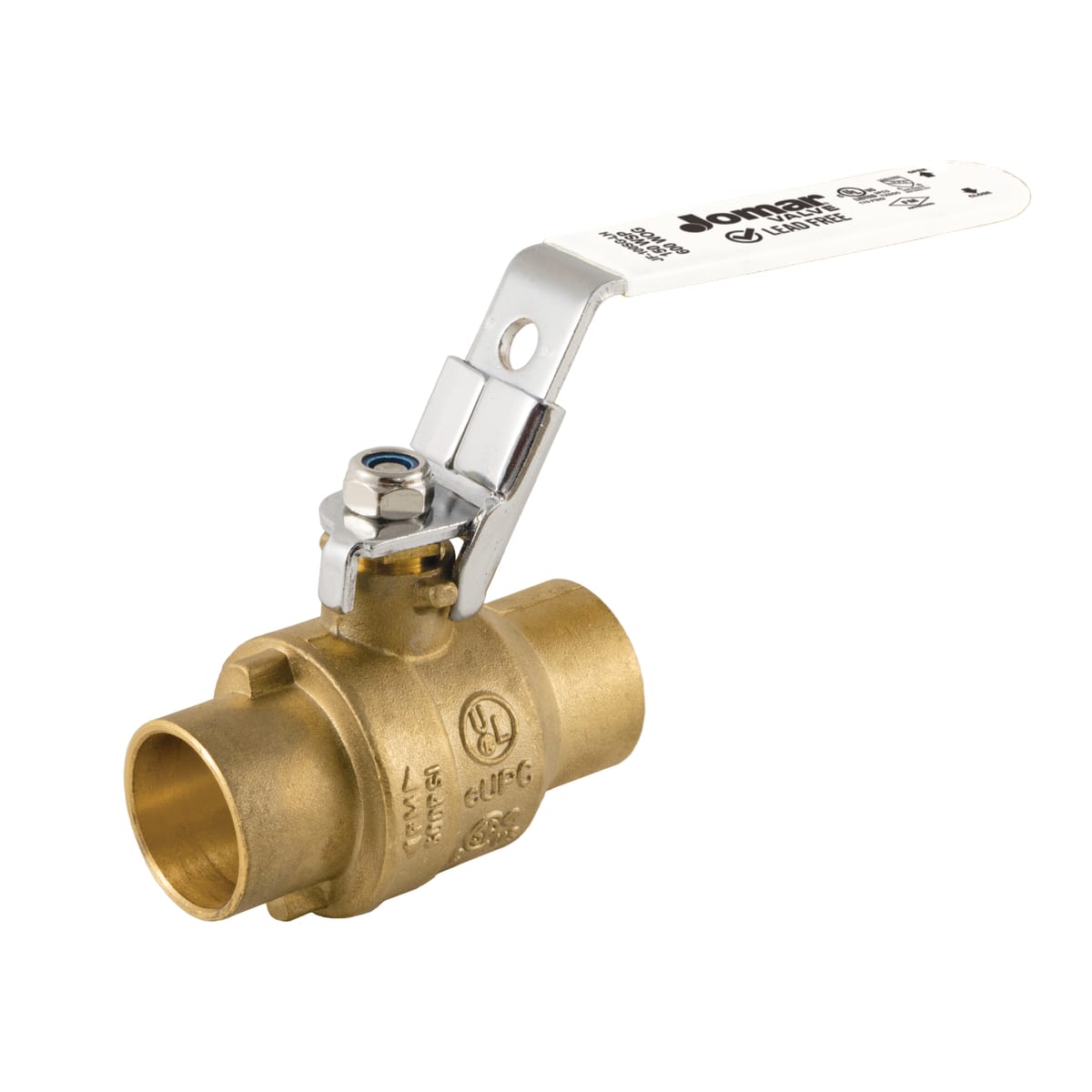

Jomar 100-114SSGLH Ball Valve 3/4 in

Product Description

The JOMAR 100-114SSGLH is a 3/4 IN ball valve with a 2-piece, full-port design and solder connection. It features a brass body, a locking lever handle, and 304 stainless steel stem and trim. This ball valve is rated to 600 PSI (WOG) and 150 PSI (SWP).

• Jo-Flo 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

This lead-free ball valve features a locking lever handle and a full port design. Suitable for various plumbing applications.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-114SSGLH

Technical Specifications

• Series/Model: Model JF-100SG-LH
• Nominal Size: 3/4 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Ball
• Packing Material: PTFE, Brass Gland
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Width: 2.8 IN
• Lead Free: Yes
• Other Physical Dimension: 2.91 IN Inlet Center To Top Of Handle, 4.86 IN Handle Length
• Ball Material: 304 Stainless Steel
• End Style: Solder
• Inlet to Outlet Length: 2.8 in
• Port Type: Full
• Softgoods Material: PTFE/Buna-N
• Top to Inlet Center: 2.91 in
• Type: 2-Piece
• Manufacturer: JOMAR
• WOG: 600
• Operator Type: Locking Lever Handle
• Gland Material: Brass
