Jomar 100-108SSGLH JF-100tg-lh Ball Valve 2 IN

Product Description

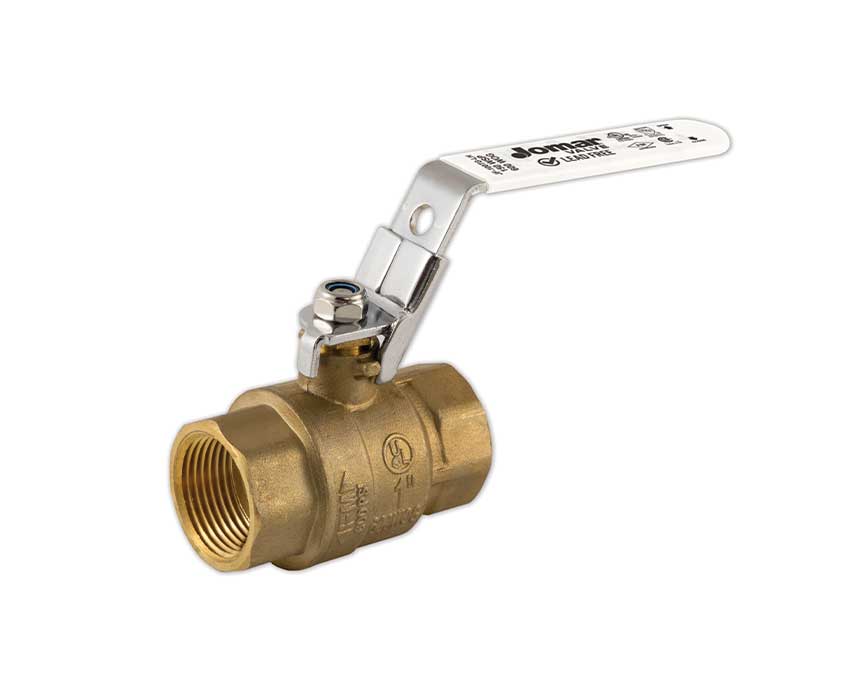

The JOMAR 100-108SSGLH JF-100TG-LH is a 2-inch, 2-piece full-port ball valve with a threaded connection. It features a locking lever handle and a brass body. Designed with a 304 stainless steel ball and stem, this valve is suitable for various applications. Pressure rated to 600 PSI (WOG) and 150 PSI (SWP).

• 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Lead Free

Product Highlights

Full port ball valve with stainless steel trim, ideal for applications requiring a reliable shutoff.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-108SSGLH

Technical Specifications

• Series/Model: Model JF-100TG-LH
• Nominal Size: 2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Ball
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Finish/Color: Chrome Plated Handle
• Width: 4.29 IN
• Lead Free: Yes
• Other Physical Dimension: 3.97 IN Inlet Center To Top Of Handle, 5.59 IN Handle Length
• Actuator Type: Latch-Lock Handle
• Ball Material: 304 Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 4.29 in
• Port Type: Full
• Top to Inlet Center: 3.97 in
• Type: 2-Piece
• WOG: 600
• Ball and Stem: Stainless steel
• Testing: 100% leak tested
• Lead Content: Wetted surfaces contain less than .25% lead content
• Part #: 100-108SSGLH
• Model #: JF-100TG-LH
• Size: 2"
