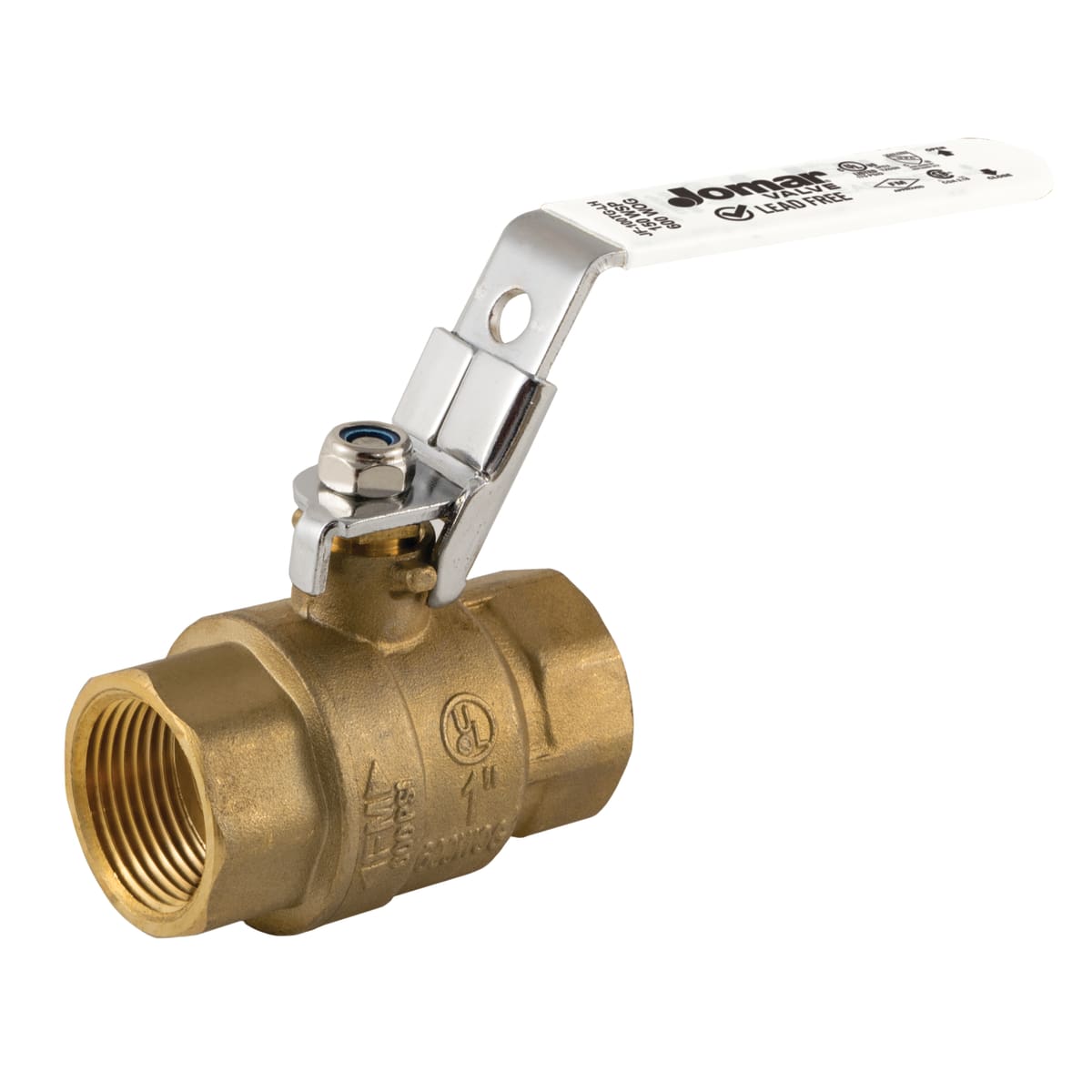

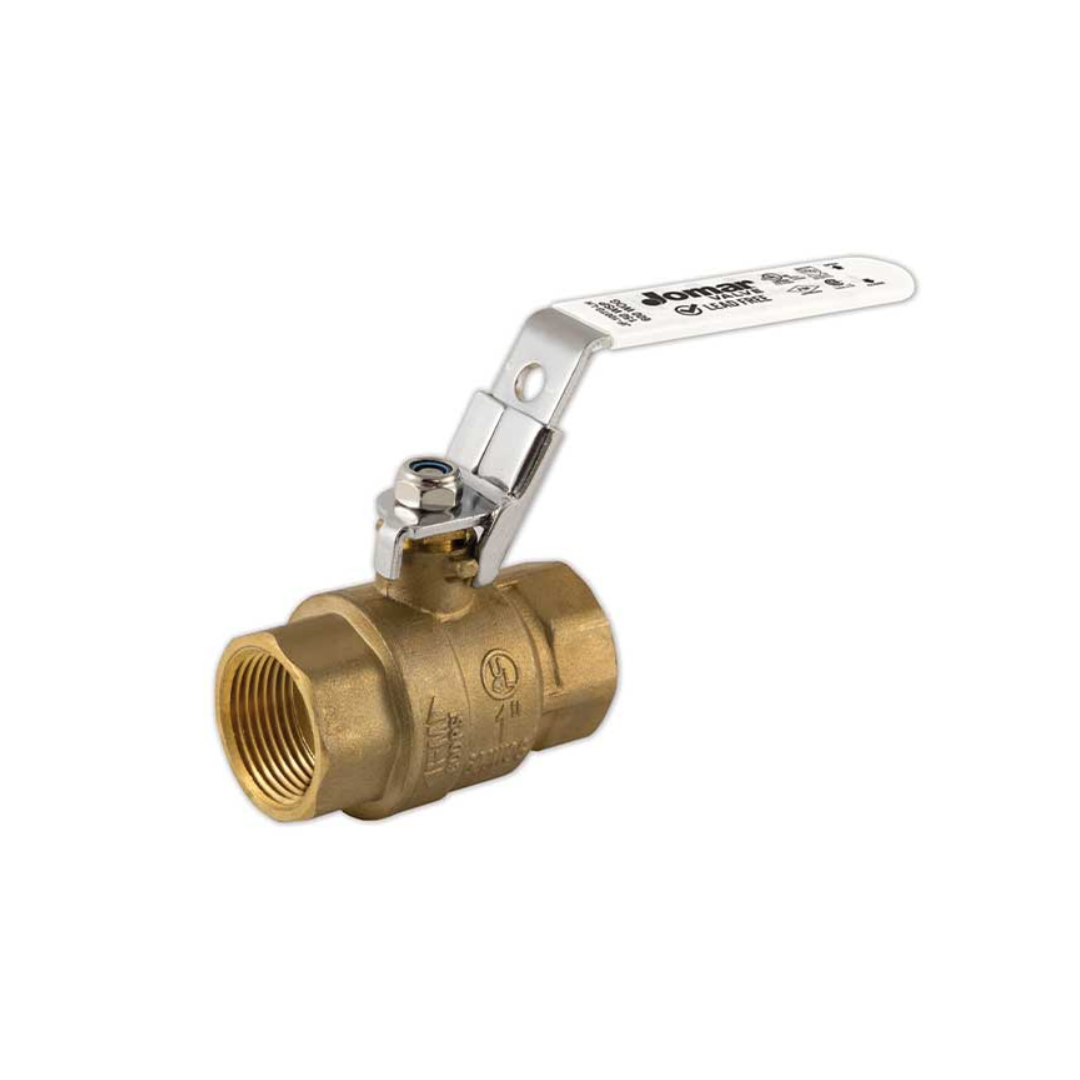

Jomar 100-106SSGLH Ball Valve 1-1/4 Inch

Product Description

The JOMAR 100-106SSGLH ball valve is a 1-1/4 inch, 2-piece, full port valve with a threaded connection and stainless steel trim. Designed with a locking lever handle, this valve is constructed from brass and is lead-free. It is rated to handle 600 PSI (WOG) and 150 PSI (SWP).

• Full port design
• Threaded connection
• Locking lever handle

Product Highlights

This lead-free brass ball valve features a dezincification resistant brass alloy and a blow-out proof stem design. It is 100% leak tested and IAPMO certified.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-106SSGLH

Technical Specifications

• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Ball
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Width: 3.44 IN
• Lead Free: Yes
• Other Physical Dimension: 3.45 IN Inlet Center To Top Of Handle, 5.59 IN Handle Length
• Ball Material: 304 Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 3.44 in
• Port Type: Full
• Top to Inlet Center: 3.45 in
• Trim: Stainless Steel
• Item Name: Ball Valve
• Type: 2-Piece, Full-Port
• Gland Material: Brass
• Connection: Threaded
• WOG: 600
