Jomar 100-105SSGLH Ball Valve 1 Inch

Product Description

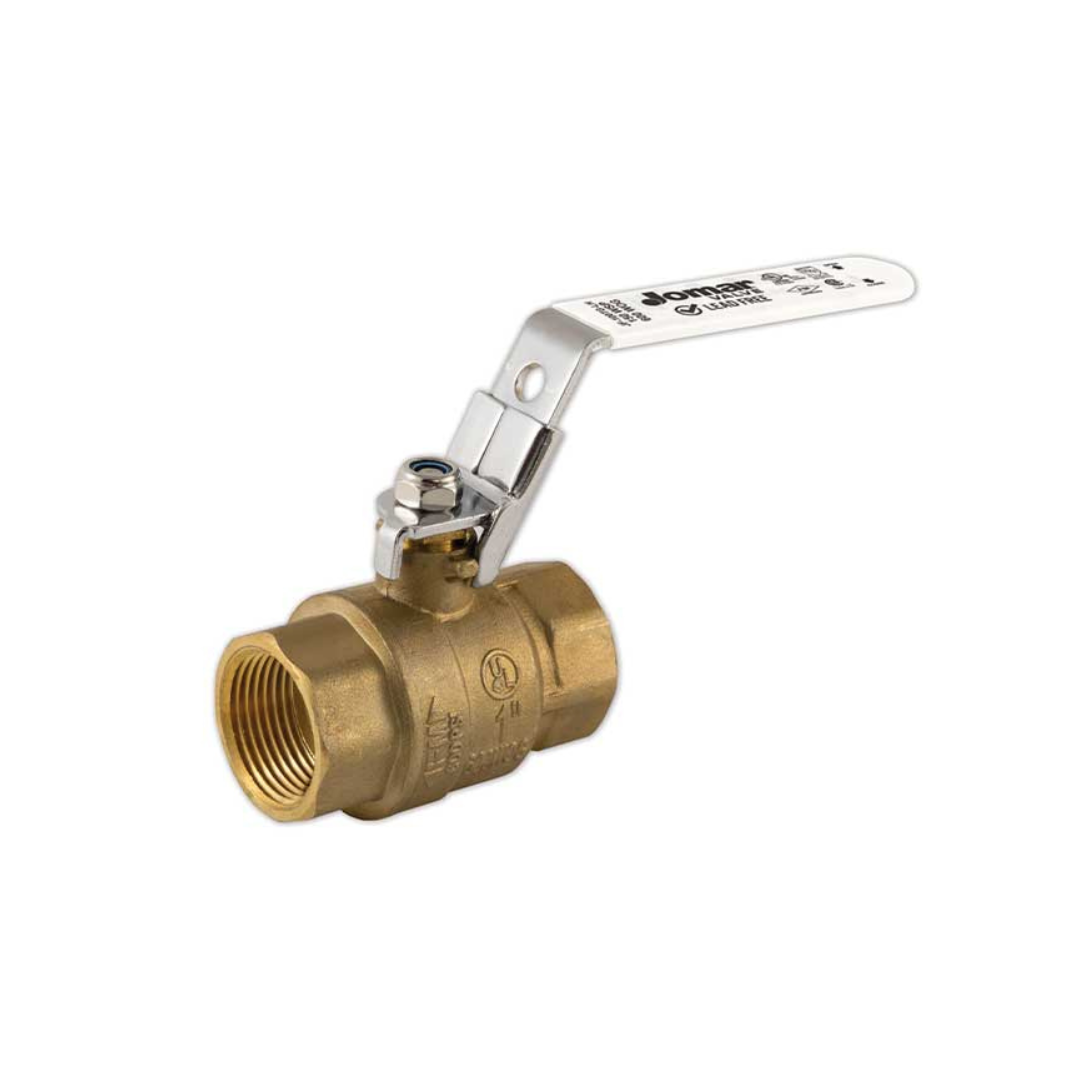

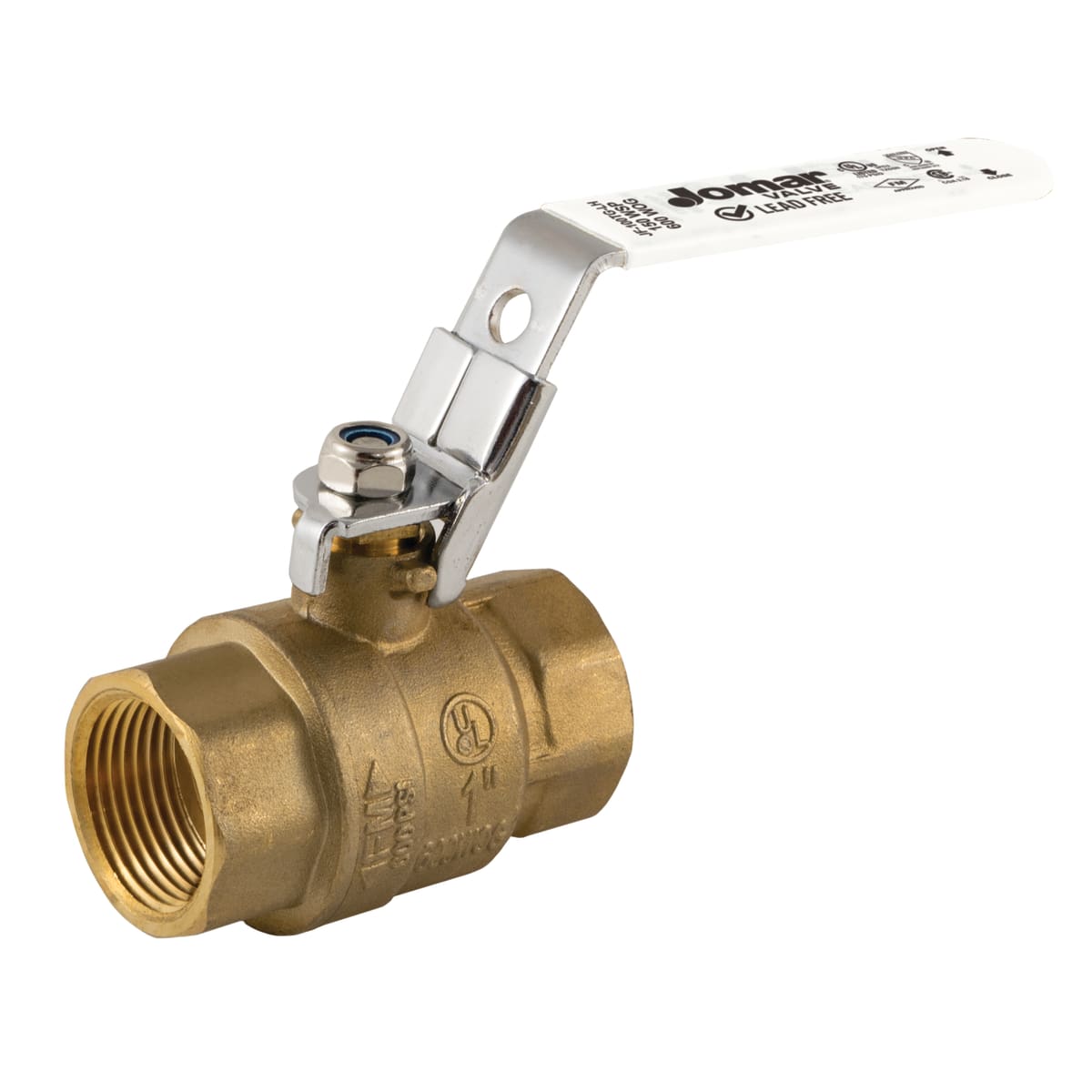

The JOMAR 100-105SSGLH is a lead-free brass ball valve with a 2-piece, full port design and threaded connection. It features stainless steel trim and a locking handle, with a 600 WOG pressure rating. This valve is suitable for various applications requiring a reliable shutoff mechanism.

• Full port design minimizes pressure drop.
• Stainless steel trim for enhanced durability.
• Lead-free brass construction ensures safe water handling.

Product Highlights

This JOMAR ball valve offers a robust design and reliable performance for demanding applications.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-105SSGLH

Technical Specifications

• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Operator Type: Locking Lever Handle
• Handle Material: Steel
• Stem Material: 304 Stainless Steel
• Trim Material: 304 Stainless Steel Ball
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Material Specification: Body And Gland: UNS C46400
• Finish/Color: Chrome Plated Handle
• Industry Standards: C/US UL Listed, C/US CSA Certified, FM Approved, NSF 61-8, NSF 372, IAPMO, CUPC Certified
• Width: 2.97 IN
• Lead Free: Yes
• Other Physical Dimension: 3.22 IN Inlet Center To Top Of Handle, 4.86 IN Handle Length
• Actuator Type: Latch-Lock Handle
• Ball Material: 304 Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 2.97 in
• Port Type: Full
• Top to Inlet Center: 3.22 in
• Type: 2-Piece
• Manufacturer: JOMAR
• WOG: 600
• Ball And Stem Material: Stainless Steel
• Housing Material: Brass
• Valve Operation: Manual
• Diameter: 1 in
• Inlet/Outlet Size: 1 in
