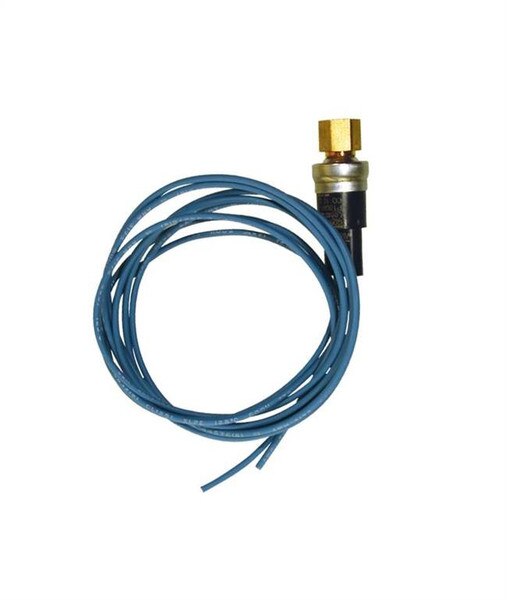

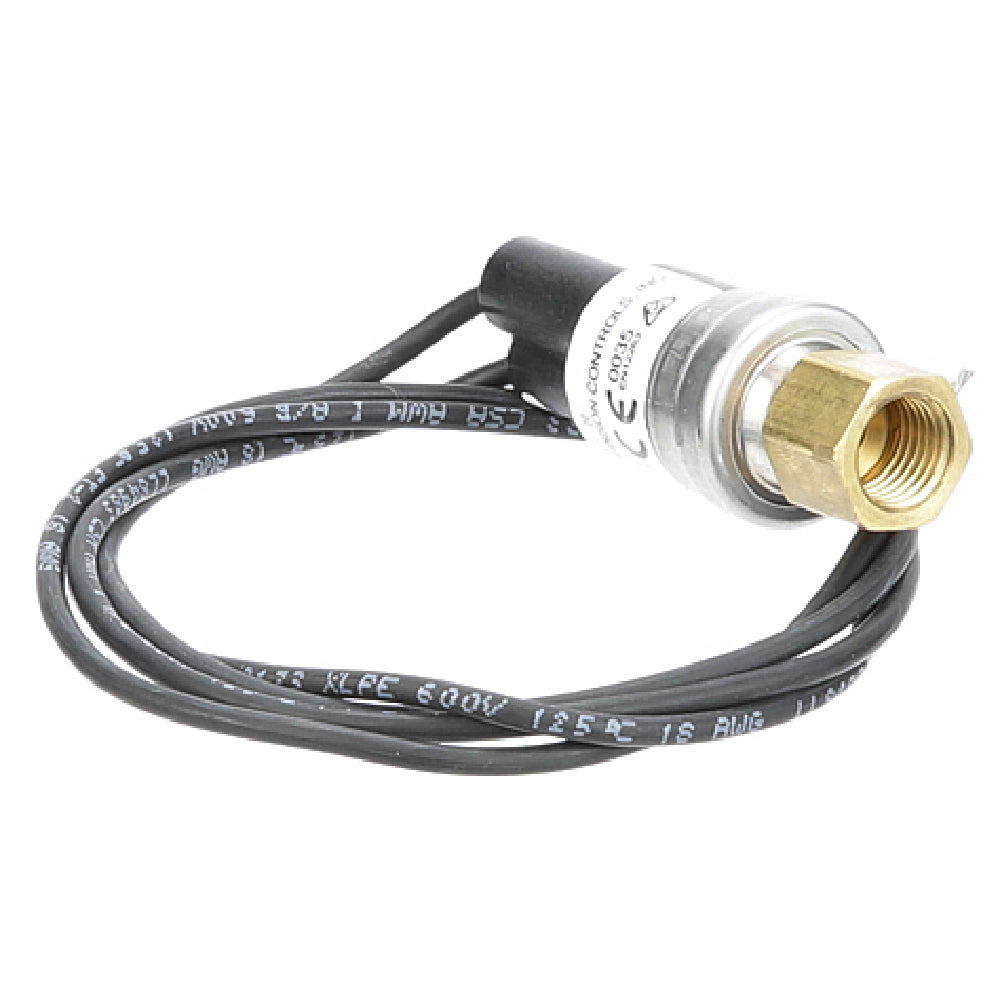

Johnsons Controls P100AP-356C Pressure Switch 20 to 45 psi

Product Description

The Johnson Controls P100AP-356C is a pressure switch designed to monitor pressure within HVAC and refrigeration systems. It operates between twenty and forty-five psi. This encapsulated switch uses single-pole, single-throw (SPST) functionality, opening on low pressure with an automatic reset feature. It includes a one-fourth inch female flare fitting with a built-in depressor for easy setup.

• Encapsulated design for durability
• Automatic reset feature
• Compatible with non-corrosive refrigerants

Product Highlights

The P100AP-356C is suitable for controlling low-pressure levels in refrigeration systems, promoting efficient operation and monitoring.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: P100AP-356C

Technical Specifications

• Application: Low Pressure
• Reset Type: Auto
• Switch Action: SPST/N.O., Open on Fall
• Cut-In PSI: 45
• Cutout PSI: 20
• Pressure Range PSIG: 45 - 20
• Connection Size: 1/4 SAE Female Flare Fitting
• Voltage Range: 24 - 240V
• Item Weight: 3.2 ounces
• Package Dimensions: 4.5 x 4 x 1.1 inches
• Material: Rubber
• Usage Compatibility: Commercial refrigeration pressure control loops
• Installation Clearance: Fits confined spaces with 1-inch dimensions
