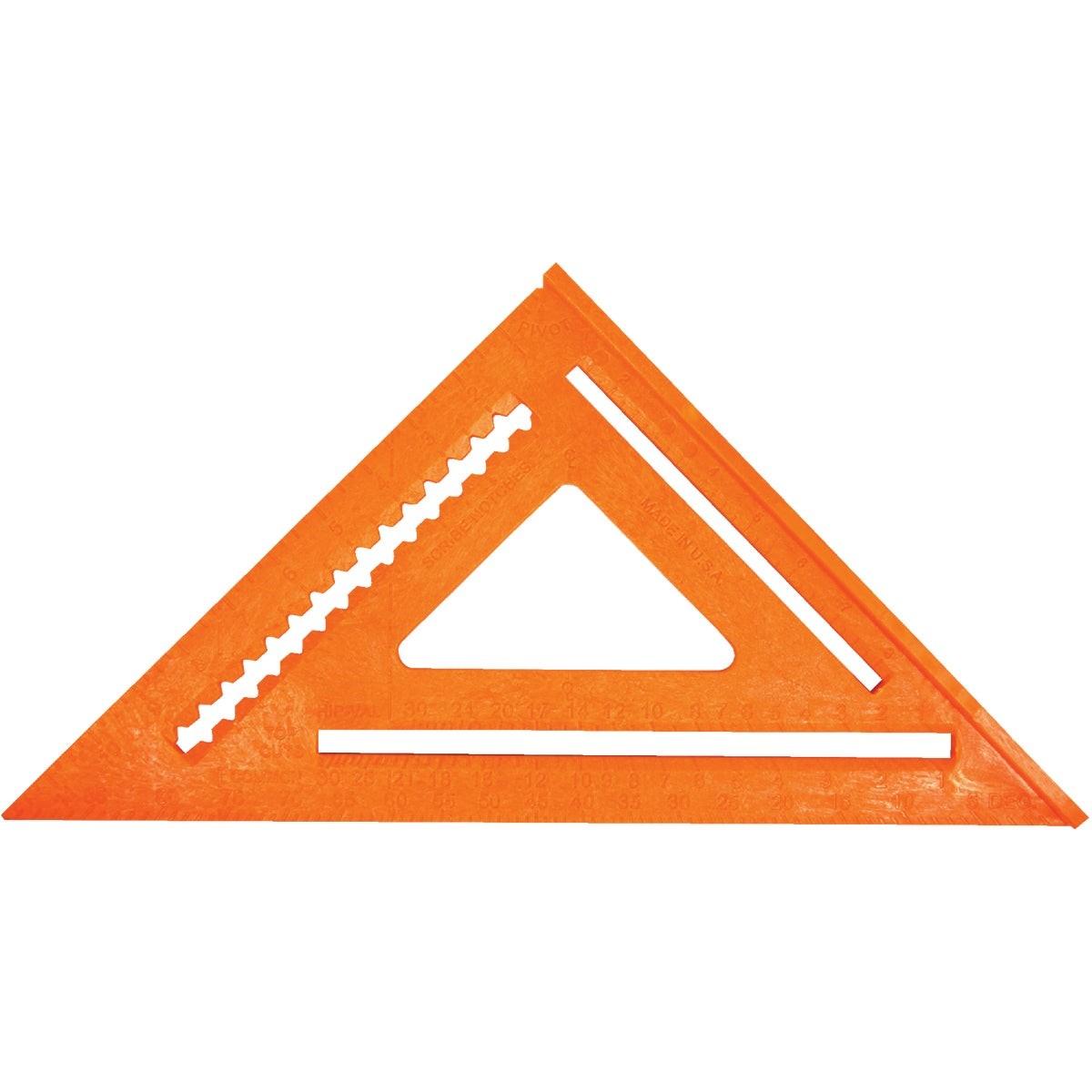

Johnson Level Tool RAS-70B-ORAN 7 Inch Plastic Rafter Square

Product Description

The JOHNSON LEVEL TOOL RAS-70B-ORAN is a 7-inch rafter square made from Structo-Cast high-impact molded plastic. Designed for layout and angle work on framing, roofing, and general carpentry tasks, this square delivers fast, accurate measurements in a lightweight, durable package. The molded graduations are permanent, meaning they will not wear off with regular jobsite use. At 0.267 pounds, it is easy to carry and handle throughout a full work shift. Carpenters, framers, and roofers will find the compact size and rugged construction well suited to daily trade use.

This rafter square is appropriate for residential and light commercial framing, roofing layout, stair stringers, and general carpentry. The thick edge doubles as a saw guide for quick crosscuts and angle cuts, reducing the need for additional layout tools. A built-in centering feature assists with locating the center of boards or stock when laying out circles or arcs. Built-in scribe notches add further utility for marking parallel lines along an edge. It is intended for use by framers, finish carpenters, roofers, and skilled tradespeople who need a reliable compact layout square on the job.

Key Features

• Structo-Cast high-impact molded plastic construction for durability and light weight
• Permanent molded graduations resist wear from jobsite conditions
• Thick edge functions as a saw guide for crosscuts and angle cuts
• Unique centering feature assists with circle and arc layout
• Built-in scribe notches for marking parallel lines
• Compact 7-inch size for easy carry and one-hand use

Compatibility

Designed as a general-purpose layout square suitable for framing, roofing, and carpentry applications where a compact rafter square is required.

Installation Notes

No installation is required for this hand tool. Keep the square clean and free of debris to maintain measurement accuracy. When using the thick edge as a saw guide, ensure the workpiece is properly secured before cutting. Inspect the square periodically for cracks or damage that could affect layout precision.

Technical Specifications

• Blade Length: 7 inches
• Material: Structo-Cast high-impact molded plastic
• Weight: 0.267 pounds
• Unit of Measure: Each

Standard Information

• Brand: JOHNSON LEVEL TOOL
• Manufacturer Part Number: RAS-70B-ORAN
