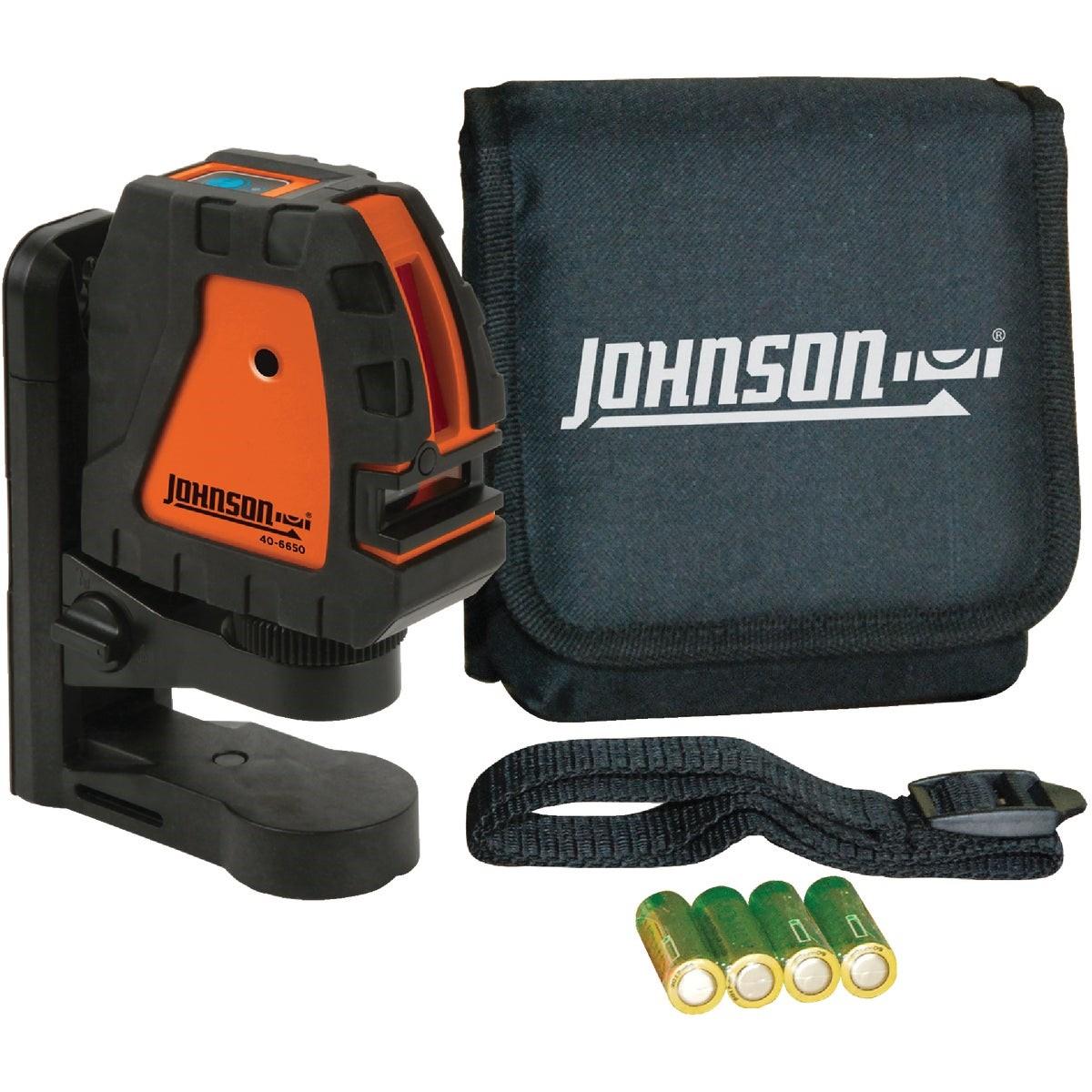

Johnson Level Tool 40-6650 Cross-line Laser 150 Ft

Product Description

The JOHNSON LEVEL TOOL 40-6650 is a red-beam, self-leveling cross-line laser designed for layout and alignment tasks in commercial and residential construction. It projects one horizontal line, one vertical line, or a full cross-line pattern, selectable separately or simultaneously. The unit features a visual out-of-level indicator so the operator knows immediately when the laser is outside its self-leveling range. Laser wavelength is 635nm plus or minus 10nm, and the unit carries a Class IIIa laser classification. Working temperature range spans 14 degrees F to 113 degrees F, making it suitable for most interior and outdoor job-site conditions.

This laser is built for professional trades that require accurate line projection across longer distances. The 150-foot working range supports large open-floor layouts, wall framing alignment, drop-ceiling grids, and door or window plumb checks. The included multi-functional elevating magnetic bracket uses rare earth magnets to mount on walls, steel studs, or metallic surfaces, and accepts a standard tripod via 5/8 inch-11 or 1/4 inch-20 center screw threads. While mounted on the bracket, the laser can be raised or lowered 2.5 inches and rotated a full 360 degrees for precise positioning without relocating the base.

Key Features

• Projects horizontal, vertical, or simultaneous cross-line red beam at 635nm plus or minus 10nm
• Self-leveling with visual out-of-level indicator for instant feedback
• 150-foot working range suitable for large interior layout work
• Elevating magnetic bracket with rare earth magnets raises or lowers 2.5 inches and rotates 360 degrees
• Dual tripod thread compatibility: 5/8 inch-11 and 1/4 inch-20 center screw
• IP 55 rated for dust and water-spray resistance on active job sites

Compatibility

Designed for use as a freestanding or bracket-mounted cross-line laser on standard tripods and magnetic mounting surfaces. Compatible with tripods equipped with 5/8 inch-11 or 1/4 inch-20 threaded heads.

Installation Notes

Setup and operation of this laser level does not require a licensed trade, but job-site laser safety protocols apply given the Class IIIa classification — avoid directing the beam toward eyes and post appropriate laser-use warnings in occupied work areas. Mount the unit on a stable tripod or the included magnetic bracket on a clean, flat metallic surface before powering on. Allow the self-leveling mechanism to settle before taking reference marks. Power off and remove batteries when storing or transporting the unit.

Technical Specifications

• Working Range: 150 feet
• Laser Wavelength: 635nm plus or minus 10nm
• Laser Classification: Class IIIa
• Beam Configuration: Horizontal, vertical, or cross-line (simultaneous or independent)
• Bracket Elevation Adjustment: 2.5 inches raise or lower
• Bracket Rotation: 360 degrees
• Tripod Thread: 5/8 inch-11 and 1/4 inch-20
• IP Rating: IP 55
• Working Temperature: 14 degrees F to 113 degrees F
• Power Source: 4 AA alkaline batteries (included)
• Weight: 2.285 pounds

Standard Information

• Brand: JOHNSON LEVEL TOOL
• Manufacturer Part Number: 40-6650
