Johnson Level Tool 40-6624 Line Laser Level 23 Ft

Product Description

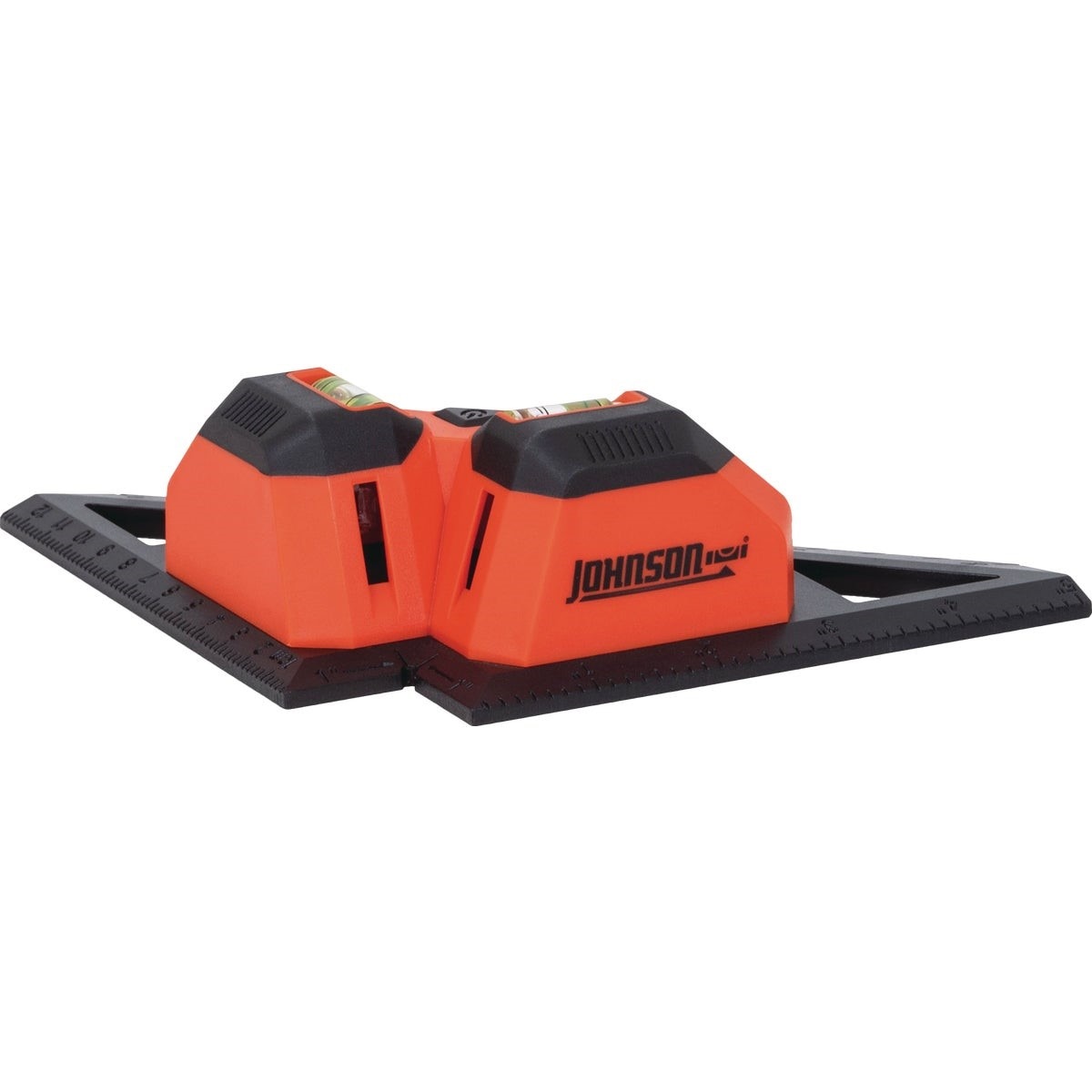

The JOHNSON LEVEL TOOL 40-6624 is a manual-leveling line laser level designed for tile and floor covering installation. It projects two perpendicular laser beams to establish a precise 90-degree reference plane across the work surface. With a working range of 23 feet, the unit is well-suited for residential and light commercial flooring layouts. The tool weighs 0.92 pounds, making it easy to reposition across a jobsite. Dual leveling vials allow use on vertical surfaces in addition to standard horizontal floor layouts. Ruled ends marked in inch, metric, and angle graduations add layout flexibility without additional tools.

The 40-6624 is built for flooring and surface layout applications including tile, stone, brick, carpet, and hardwood. It projects laser lines directly over wet mastic or concrete, which is a practical advantage during tile setting before adhesive cures. The compact, lightweight form factor makes it a practical choice for finish flooring contractors, tile setters, and floor covering installers working in residential kitchens, bathrooms, and commercial spaces requiring accurate perpendicular layout lines.

Key Features

• Projects two perpendicular laser beams forming a 90-degree reference for surface layout
• 23-foot working range suitable for most residential and light commercial floor areas
• Dual leveling vials allow use on both horizontal and vertical surfaces
• Ruled ends with inch, metric, and angle markings for direct measurement without additional tools
• Operates over wet mastic or concrete surfaces during active tile installation
• Includes two AA alkaline batteries

Compatibility

Designed as a general-purpose manual-leveling line laser level for tile, stone, brick, carpet, and hardwood flooring layout applications up to 23 feet.

Installation Notes

Installation and setup should be performed by a qualified tile setter or flooring contractor familiar with laser layout tools. Place the unit on a stable, level surface before activating the laser and confirm level using the onboard vials before marking reference lines. Avoid directing laser beams toward eyes, and follow all applicable jobsite safety requirements for laser use. No power shutoff is required for battery-operated operation, but replace batteries before use if output appears dim or inconsistent.

Technical Specifications

• Working Range: 23 feet
• Laser Lines: 2 perpendicular beams at 90 degrees
• Weight: 0.92 pounds
• Leveling Method: Manual with dual leveling vials
• Scale Markings: Inch, metric, and angle
• Power Source: 2 AA alkaline batteries (included)
• Sold As: Each

Standard Information

• Brand: JOHNSON LEVEL TOOL
• Manufacturer Part Number: 40-6624
