Johnson Hardware 100601DR Pocket Door Track Set 125 Lb

Product Description

The JOHNSON HARDWARE 100601DR is a single-track pocket door system designed for on-the-job construction and installation of pocket doors in residential and light commercial settings. The track is extruded aluminum with convex rails that provide a jump-proof ride for the 3-wheel tricycle hangers. Heavy-gauge steel components are zinc plated for corrosion resistance and a clean finish. The system handles doors sized 1-3/8 inches or 1-3/4 inches thick and supports door weights up to 125 pounds. A licensed carpenter or finish contractor typically installs this hardware during rough-in or finish carpentry phases.

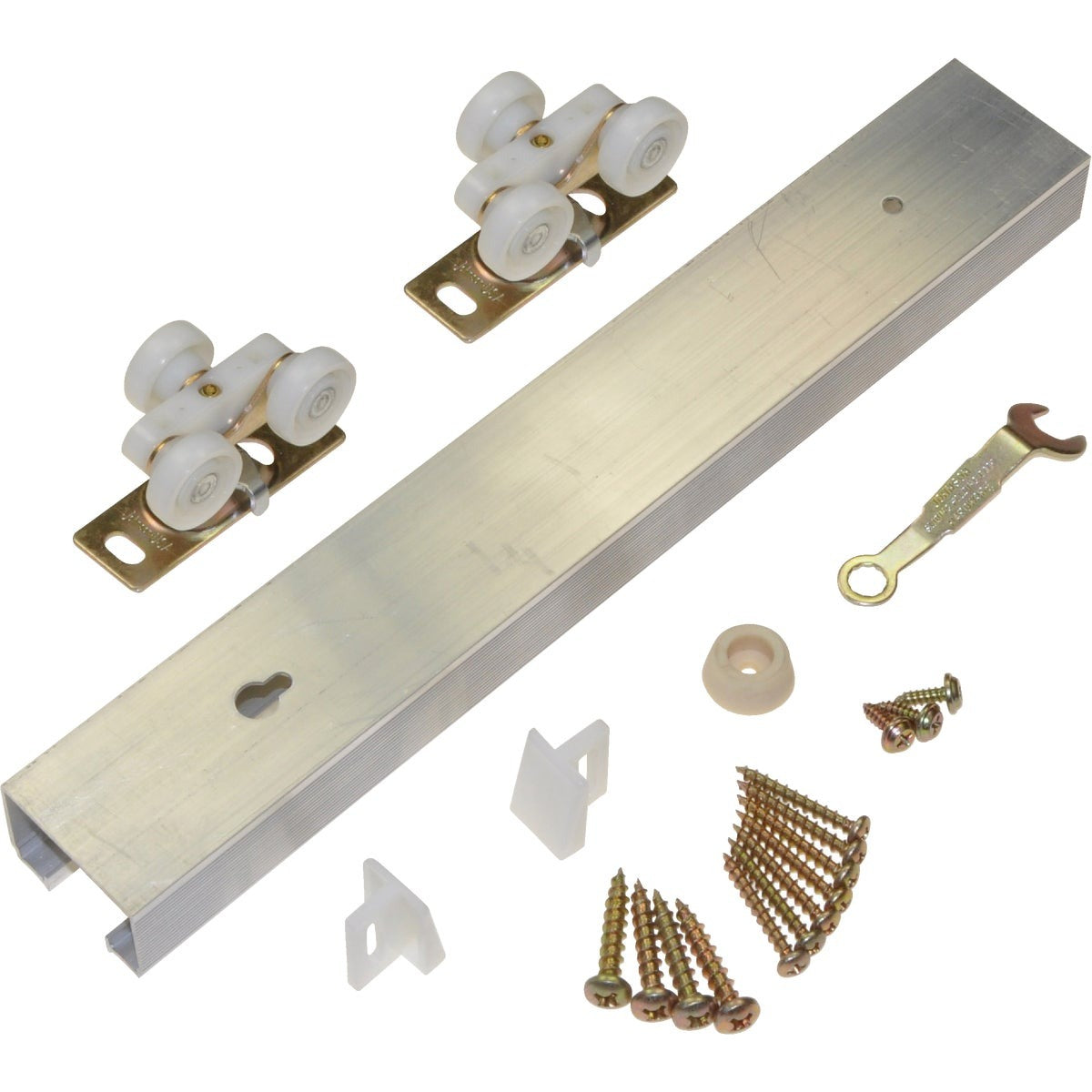

This track set is suited for single pocket door installations in residential new construction and remodel work. It can also be combined with additional Johnson series tracks for special sliding door configurations requiring extended or multi-panel runs. The kit ships complete with the track, 2 hangers, 1 rubber door stop, 2 guides, and 1 wrench, making it a self-contained package for standard pocket door rough-in.

Key Features

• Aluminum track with convex rails for jump-proof hanger operation
• Tricycle-style 3-wheel hangers deliver smooth, consistent rolling action
• Supports doors 1-3/8 inches or 1-3/4 inches thick up to 125 pounds
• Zinc-plated heavy-gauge steel components for durability and appearance
• Versatile design allows combination with other Johnson series tracks for special installations
• Complete kit includes track, 2 hangers, 1 rubber door stop, 2 guides, and 1 wrench

Compatibility

Designed for use with 1-3/8 inch and 1-3/4 inch pocket doors up to 125 pounds. Compatible with Johnson Hardware hanger model 1120PPK1. Can be used alone or combined with other Johnson series tracks for extended or special sliding door installations.

Installation Notes

Installation is typically performed by a finish carpenter or general contractor during door rough-in. Power tools and standard carpentry hand tools are required for track mounting and door hanging. Ensure the rough opening and header are properly sized and reinforced to carry the full door load before mounting the track. Consult local building codes for door framing requirements applicable to your project type.
