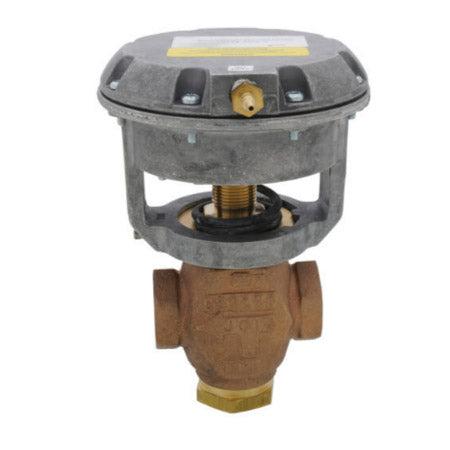

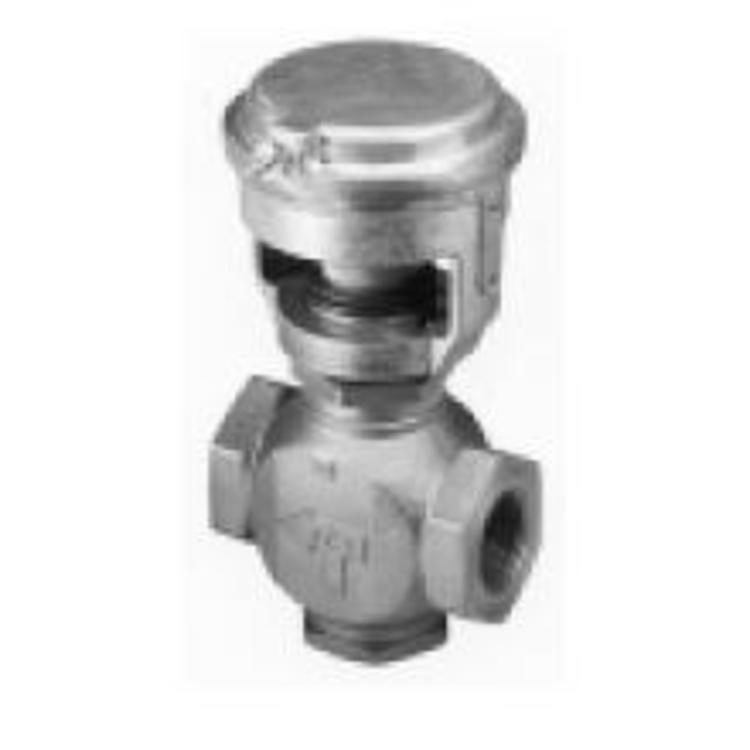

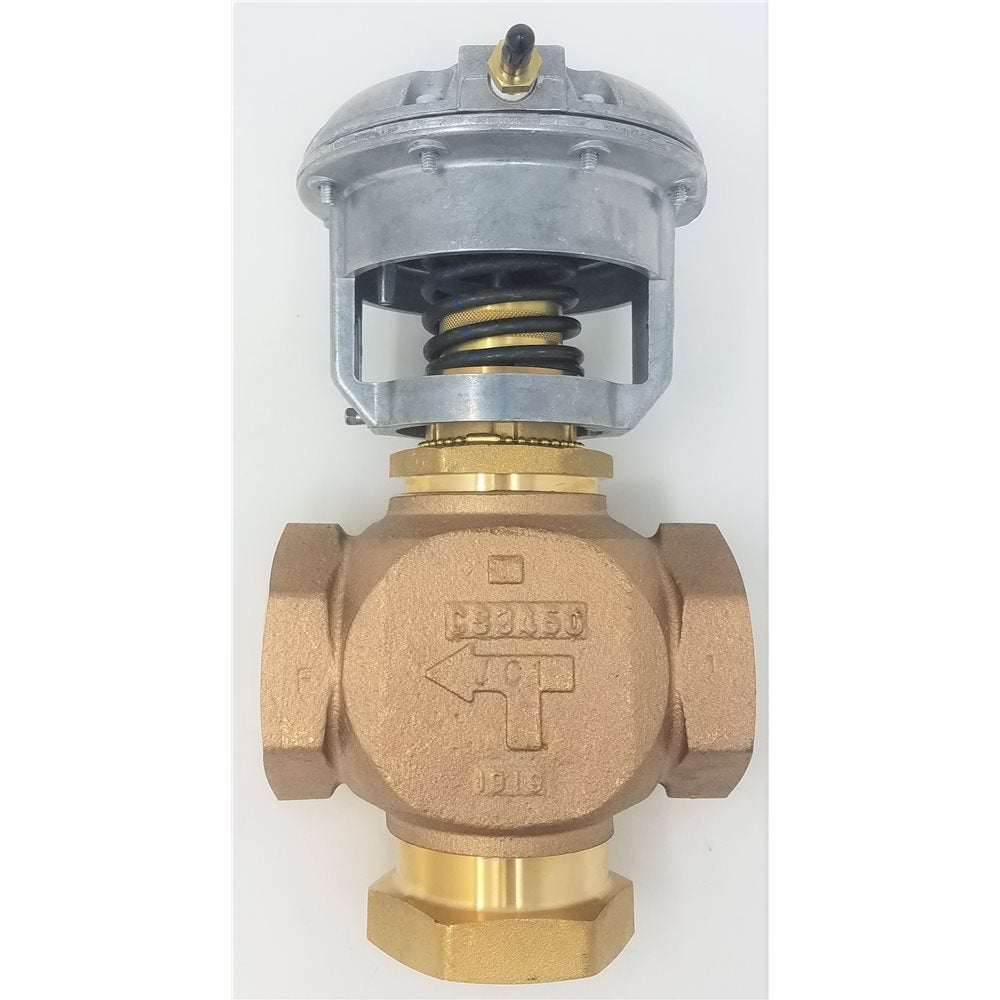

Johnson Controls VG7842NT+3008E Globe Valve Assembly, 3 Way 1 in.

Product Description

The JOHNSON CONTROLS VG7842NT+3008E is a globe valve assembly designed for HVAC systems. This 3-way valve features a 1-inch NPT connection and a bronze body. It has a flow coefficient (Cv) of 11.6 and uses a pneumatic actuator with a 9 to 13 psig spring range. The valve is suitable for hot water, chilled water, glycol solutions, and steam.

• Valve Body Static Pressure Rating: ANSI Class 250
• Factory Or Field Assembly
• Durable construction

Product Highlights

Globe valve assembly with pneumatic actuator for HVAC applications, featuring a bronze body and 1-inch NPT connection.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7842NT+3008E
• Country of Origin: Mexico

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
• Closeoff Pressure: 42/65 psig
• Flow Characteristic: Linear
• Operating Conditions: 35 F To 248 F (2 C To 120 C)
• Actuator Operating Conditions: -20 F To 150 F (-29 C To 66 C)
• Brand: Johnson Controls
• Product Type: 3-Way
• Size: 1IN
• Flow Rate: 11.6Cv
• End Connection: NPT
• Material: Bronze
• Options: 3008E Actuator
• Stem Type: Standard
• Temperature: 35 to 284DEG F
• Application: HVAC System
• Manufacturer: Johnson Controls, Inc
• Product Group: BISS
• Valve body static pressure rating: ANSI Class 250
• Fluid temperature: 35 to 284°F (2 to 140°C), 38 psig saturated steam
• Item Number: VG7842NT+3008E
• Model: VG7000
• Valve Size: 1"
• Valve Connection: NPT
• Piping Configuration: 3-Way
• Body Material: Bronze
• Valve Application: Steam, Water
• Max Pressure: 15 psi WSP, 125 psi WOG
• CV: 11.6
• Trim: Brass
• Linkage: VG7000-1006
• Actuator: 3008E
• Assembly: Assembly
• Pipe Size: 1 in
• Connection: NPT
• Valve Type: 3-Way
• Flow Pattern: Mixing
• Power Supply: Pneumatic
• Spring Range: 9-13 PSI
• Valve Number: VG7842NT
• Close Off Pressure: 42/65 PSI-Stem Up/Stem Down
• Actuator Type: Pneumatic
• PSI: 9-13
• Cv: 11.6 CV
• Fail-Safe: Spring Return
• Trim Material: Stainless Steel
• Pattern: 3-way
• Control Signal: Pneumatic
• SIZE: 01.00 IN.
• MEDIUM: WATER & STEAM
• DIAPHRAGM AREA: 8 SQ. IN.
• FAIL POSITION: MIXING
• BODY RATING: 250 PSI
• TRIM MATERIAL: BRASS
• POSITIONER: NONE
