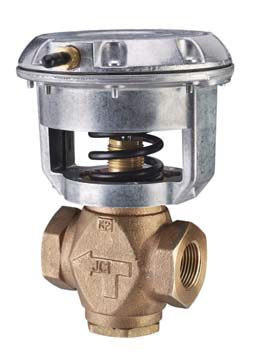

Johnson Controls VG7842LT3003D Globe Valve Assembly 3 Way 3/4 in.

Product Description

Johnson Controls VG7842LT3003D is a globe valve assembly designed for HVAC systems. This valve features a three-way configuration with a three-quarter inch connection. It allows for precise control of fluid flow in various HVAC applications.

• NPT connection with a bronze body.
• 7.3 Cv rating and stainless steel stem.
• Compatible with pneumatic actuators.

Product Highlights

The valve is suitable for hot water, chilled water, glycol solutions, and steam. It provides reliable performance across multiple operating conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7842LT3003D

Technical Specifications

• Body Material: Die-Cast Aluminum
• Service Type: Hot Water, Chilled Water, Glycol Solutions, Steam
• Closeoff Pressure: 122/41 psig
• Flow Characteristic: Linear
• Operating Temperature: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Pressure Rating: ANSI Class 250
• Air Connection: 1/8 in. NPT Barbed Fitting for 1/4 in. or 5/32 in. O.D. Polytubing
