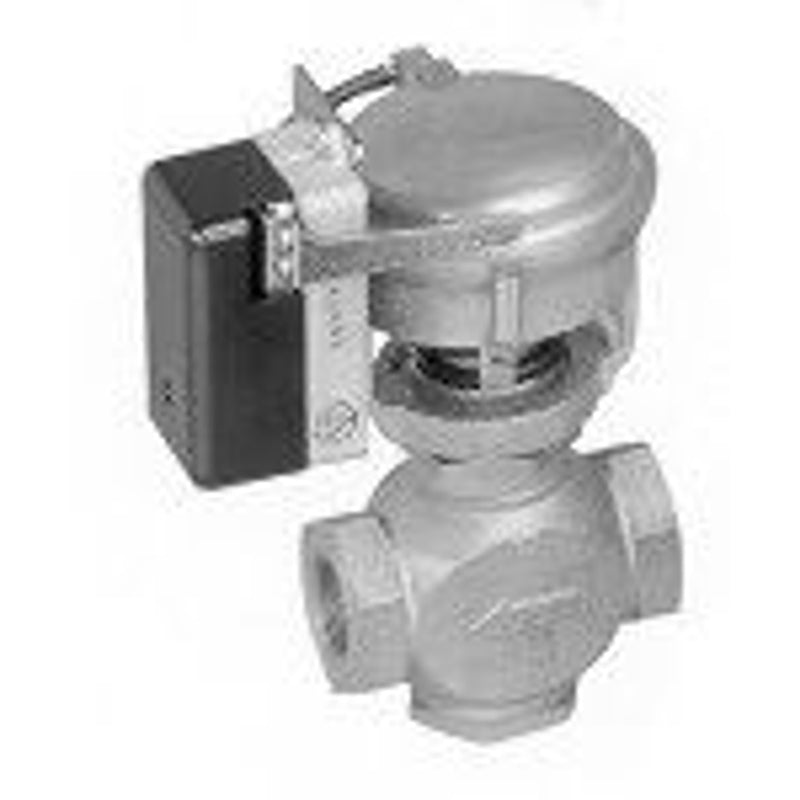

Johnson Controls VG7841CT+3008D HVAC Valves 3W1/2Npt.73 W/3008 4-8#

Product Description

The Johnson Controls VG7841CT+3008D is an HVAC valve designed for effective temperature control. This three-way mixing valve has a threaded connection of 0.5 inches and a capacity of 0.73 Cv. It operates effectively within a medium temperature range of thirty-five to two hundred forty-eight degrees Fahrenheit and can handle a maximum static pressure of four hundred psi.

• Part of the VG7000 Pneumatic Control Valves Series
• Features a three-way mixing body pattern
• Suitable for medium temperature applications

Product Highlights

This control valve is ideal for HVAC systems requiring precise temperature regulation and efficient flow management.

Product Information

Standard Information

• Brand: Johnson Controls
• Category: Valves & Manifolds

Technical Specifications

• Manufacturer Part Number: VG7841CT+3008D
• Product Series: VG7000 Pneumatic Control Valves
• Description: 3W1/2Npt.73 W/3008 4-8#
• Capacity: 0.73 Cv
• Pipe Size: 0.5 inches
• Connection Type: Threaded
• Max Static Pressure: 400 psi
• Body Pattern: Three-Way Mixing
• Valve Style: Control
• Medium Temperature Range: 35-248 degrees Fahrenheit
• Flow Characteristic: Equal Percentage
• Fail-Safe Mode: Spring Normally Open
• Comments: 4-8 psi Spring Range
• Condition: New
• Availability: Factory Stock
