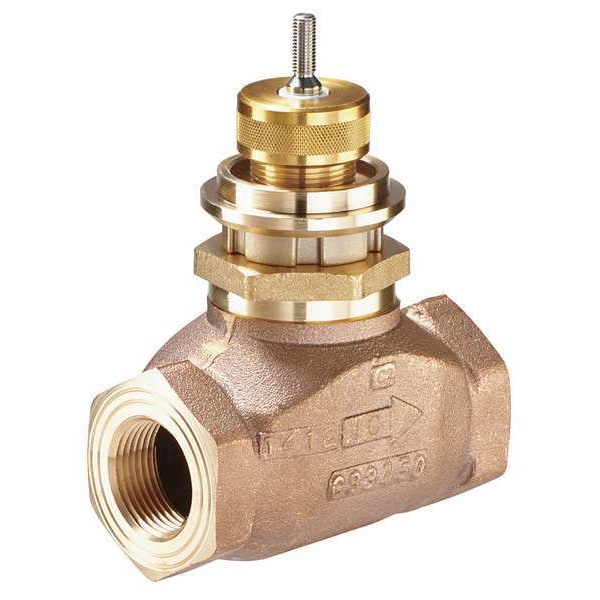

Johnson Controls VG7443RT Globe Valve Assembly 2 Way 1-1/2 in Replacement MPN

Product Description

The Johnson Controls VG7443RT+823E01 is a globe valve assembly designed for HVAC applications. This two-way valve features a one and one-half inch size and is constructed from a bronze body with a stainless steel stem. It is equipped with a molded elastomeric disk seat that provides reliable sealing and performance.

• Static pressure rating of ANSI Class 250
• Includes a pneumatic actuator and a barbed fitting for 1/4 inch O.D. polytubing air connection
• Compatible with hot water, chilled water, 50/50 glycol solutions, and steam

Product Highlights

This valve is suitable for use in various HVAC systems, ensuring efficient flow control for hot and chilled water applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7443RT+823E01

Technical Specifications

• Housing: Die-formed carbon steel coated with corrosion-resistant finish
• Service: Hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
• Closeoff Pressure: 59 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 284 F (2 C to 140 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
