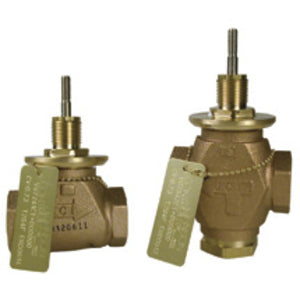

Johnson Controls VG7443ET+3003E Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7443ET+3003E is a globe valve assembly designed for HVAC systems. This two-way valve is one-half inch in size. It features a bronze body with a stainless steel stem and seat. The actuator is pneumatic and supports a variety of applications in heating and cooling systems.

• Flow coefficient rating of 1.8 Cv.
• Compatible with hot water, chilled water, glycol solutions, and steam.
• Can operate under conditions ranging from thirty-five degrees Fahrenheit to three hundred thirty-eight degrees Fahrenheit.

Product Highlights

This valve assembly is ideal for precise flow control in HVAC applications. The valve's design allows for efficient pressure management and ensures optimal system performance.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7443ET+3003E

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam for HVAC Systems
• Closeoff Pressure: 261 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
