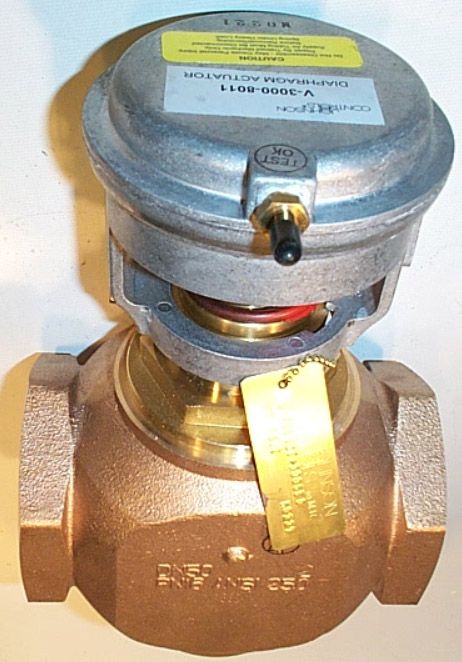

Johnson Controls VG7441ST+3008B Brass Trim Globe Valve with V-3000-8012 Actuator

Product Description

The Johnson Controls VG7441ST+3008B is a brass trim globe valve designed for precise control of hot or chilled water and steam. It features a robust actuator that operates efficiently within a spring range of three to six pounds per square inch gauge.

• Rugged actuator die-cast enclosure
• Compatible with Series valves from half to two inches
• Factory or field assembly options available

Product Highlights

This valve is suitable for various applications, including HVAC systems where reliable flow control is crucial. It can handle saturated steam and is rated for a maximum body static pressure of ANSI Class 250, making it ideal for demanding conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7441ST+3008B

Technical Specifications

• Model: VG7000
• Valve Size: 2 inches
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Bronze
• Valve Application: Steam, Water
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 17.00 pounds
