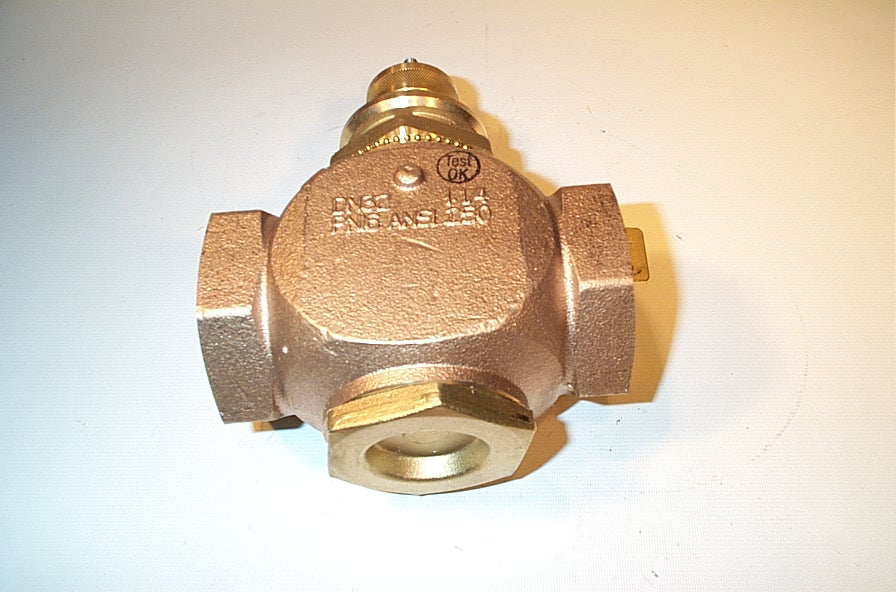

Johnson Controls VG7441PT+3008BP Globe Valve Assembly 2 Way 1-1/4 in

Product Description

The Johnson Controls VG7441PT+3008BP Globe Valve Assembly is built for efficient control in HVAC applications. This model is a two-way valve with a size of one and one-fourth inches. It features a bronze body and a stainless steel stem, ensuring durability and consistency during operation.

• Static pressure rating: ANSI Class 250
• Flow coefficient: 18.5 Cv
• Pneumatic actuator with a spring range of three to six psig

Product Highlights

This valve supports hot water, chilled water, and glycol solutions, making it versatile for various HVAC needs.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441PT+3008BP

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam
• Closeoff Pressure: 10 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F
• Actuator Operating Conditions: -20 F to 150 F
