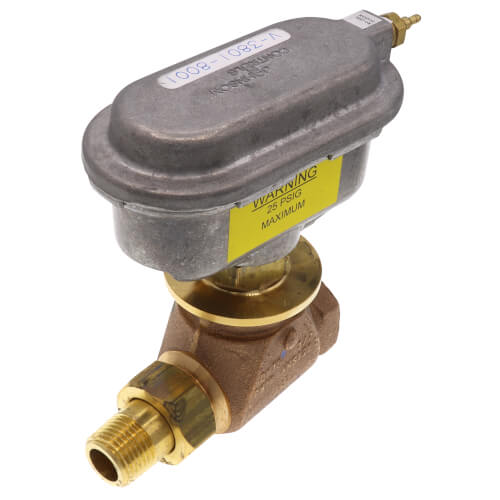

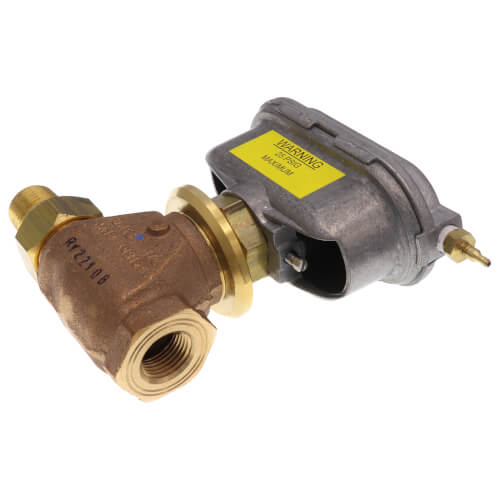

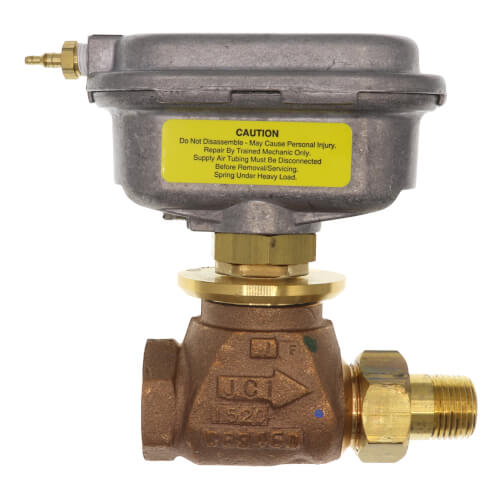

Johnson Controls VG7251GS+3801D Brass Trim Globe Valve Pneumatic Actuator

Product Description

The Johnson Controls VG7251GS+3801D Brass Trim Globe Valve seamlessly integrates with compact pneumatic actuators to manage hot or chilled water, and 15 psig saturated steam applications efficiently. Manufactured to accommodate tight spaces, this valve solution stands out with its robust construction and stringent performance specifications.

• Optimally designed for small installations like baseboard radiators and convectors
• Features a stainless steel valve stem and a rugged die-cast actuator enclosure
• Operates efficiently within a fluid temperature range of 35 to 248 degrees Fahrenheit

Product Highlights

This Globe Valve and Actuator assembly features a maximum supply air pressure of 25 psig and is rated ANSI Class 250 for static pressure. Ideal for both factory or field assembly, ensuring versatile application and easy integration into various systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7251GS+3801D

Technical Specifications

• Connection Type: Union Globe End
• Actuator Type: Pneumatic
• Flow Capacity (Cv): 4.6
• Fluid Temperature Range: 35F to 248F
• Body Material: Brass
• Valve Type: 1/2 inch Normally Open
