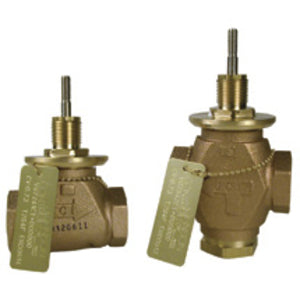

Johnson Controls VG7243GT 3003E Globe Valve Assembly 2 Way 1/2 in. Replacement MPN

Product Description

The Johnson Controls VG7243GT+3003E is a globe valve assembly designed for two-way flow handling. This valve is suited for various HVAC applications, making it essential for efficient system performance. It features an NPT connection with a diameter of half an inch and a capacity of 4.6 Cv. The construction includes a bronze body and a stainless steel stem along with a pneumatic actuator, making it durable for multiple use cases.

• Effective diaphragm area of 8 square inches.
• Factory or field assembly for versatile installation options.
• Spring range from 9 to 13 psig for adjustable performance.

Product Highlights

This valve can manage hot water, chilled water, glycol solutions, and steam, contributing to its reliability in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243GT+3003E

Technical Specifications

• Housing: Rugged die-cast enclosure
• Service: Hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
• Close-off Pressure: 169 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
