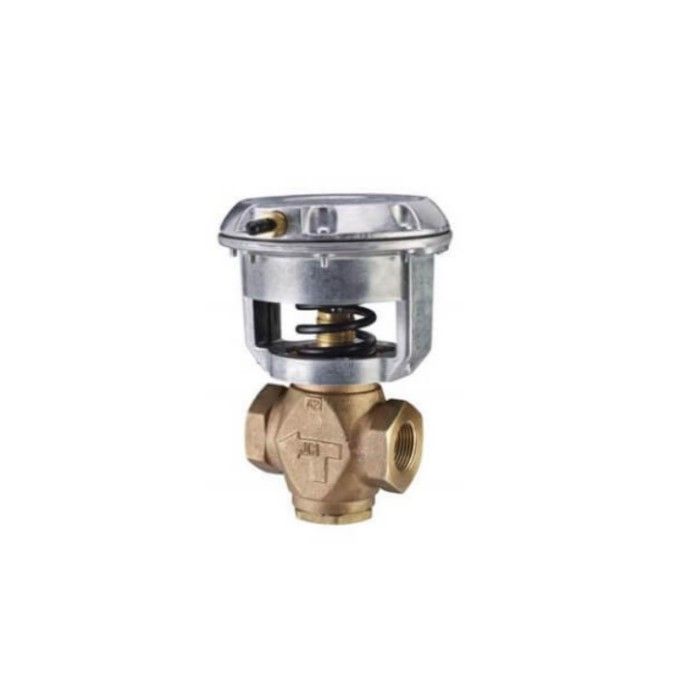

Johnson Controls VG7241CT+3003D Globe Valve Assembly 2 Way 1/2 in

Product Description

The Johnson Controls VG7241CT+3003D is a globe valve assembly designed for heating and cooling systems. This valve features a two-way operation and a half-inch National Pipe Thread connection. It is built with a bronze body that ensures durability and reliability under various conditions. The unit has a pneumatic actuator with a spring return, making it suitable for automated control.

• NPT, 0.73 Cv, bronze body
• Stainless steel stem with brass seat
• 4 to 8 psig operation with a barbed fitting

Product Highlights

This globe valve is used in HVAC systems for regulating water and steam flows. The valve assembly is suitable for applications involving hot water, chilled water, glycol solutions, and steam.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7241CT+3003D

Technical Specifications

• Housing: Die Cast Aluminum Diaphragm, Synthetic Rubber
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam For HVAC Systems
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Operating Conditions (Actuator): -20 F to 150 F (-29 C to 66 C)
