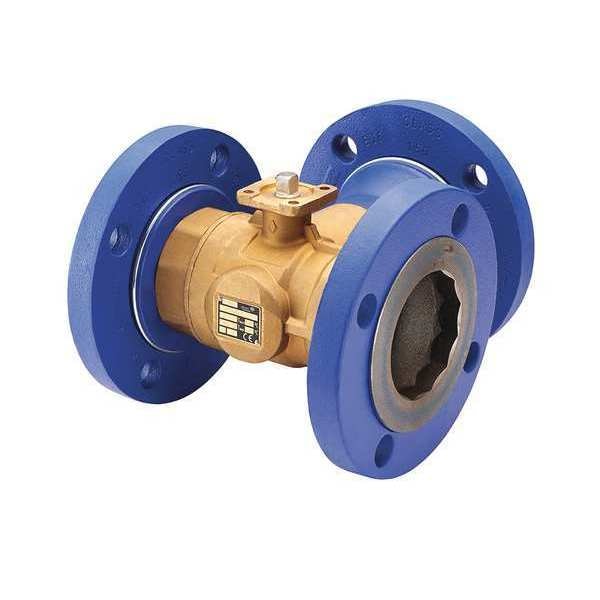

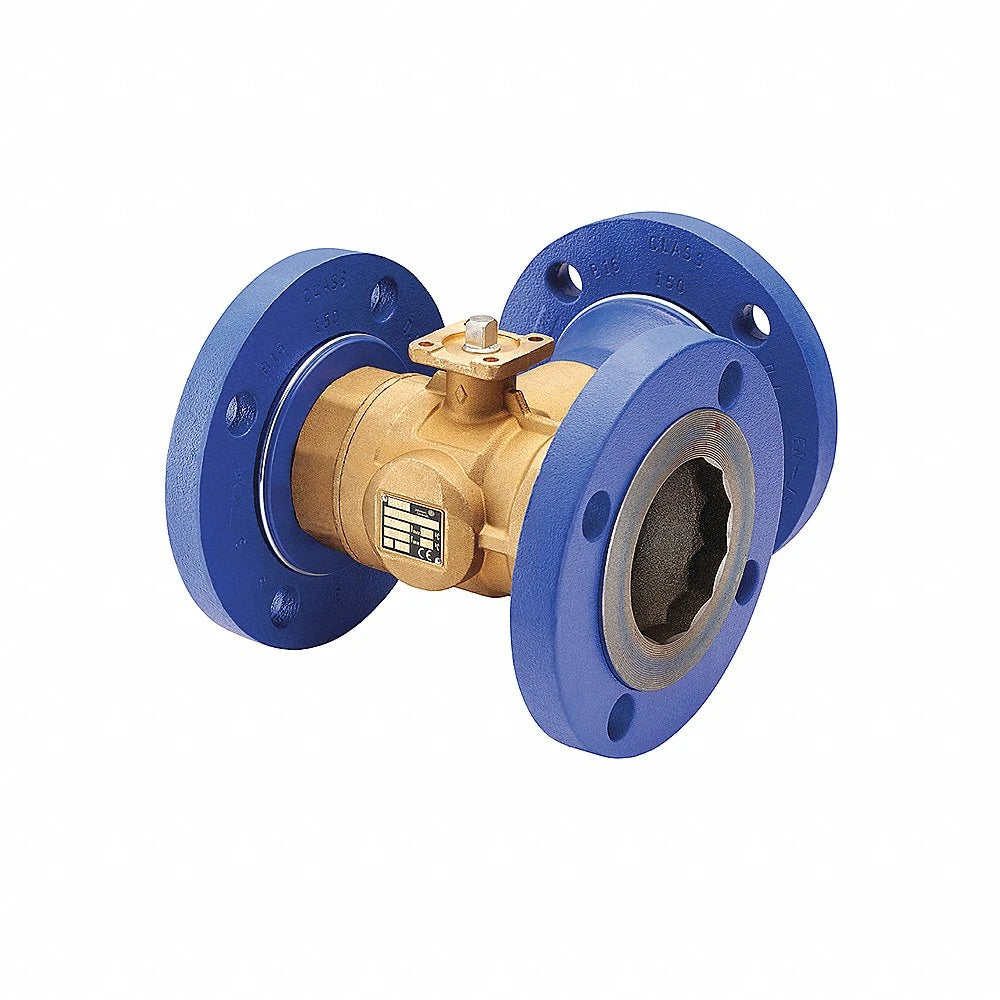

Johnson Controls VG18A5KS Control Ball Valve, 3-Way, 46 Coefficient 2 1/2 in

Product Description

The JOHNSON CONTROLS VG18A5KS is an HVAC Control Ball Valve designed for precise fluid regulation. This 3-way valve features a flanged connection with a 2 1/2 inch size and a coefficient of volume of 46. Constructed from brass and stainless steel, it is suitable for controlling hot/chilled water, steam, and water glycol solutions. It offers a safe working water pressure of 250 psi and a maximum water temperature of 284 Degrees F. The valve has a closeoff pressure of 50 psi and is compatible with Mfr. No. M9000.

• 3-Way valve with a flanged 2 1/2 inch connection and a Coefficient of Volume (Cv) of 46.
• Constructed with brass and stainless steel, suitable for hot/chilled water, steam, and water glycol solutions.
• Features a safe working water pressure of 250 psi and a maximum water temperature of 284 Degrees F.

Product Highlights

This JOHNSON CONTROLS VG18A5KS HVAC Control Ball Valve provides precise 3-way flow regulation for hot/chilled water systems, featuring durable brass and stainless steel construction.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG18A5KS
• Country of Origin: Mexico

Technical Specifications

• Item: HVAC Control Ball Valve
• Depth: 13 in
• Width: 11 in
• Height: 13 in
• Material: Brass, Stainless Steel
• Valve Type: 3-Way
• For Use With: Mfr. No. M9000
• Connection Size: 2 1/2 in
• Connection Type: Flanged
• Max. Water Temperature: 284 Degrees F
• Closeoff Pressure: 50 psi
• Coefficient of Volume: 46
• Safe Working Steam PSI: 25
• Safe Working Water PSI: 250 psi
• Actuator Included: Valve Only
• Application: Control of Hot/Chilled Water
• Flow Characteristic: Equal Percentage, Linear
• Trim Material: Stainless Steel
• Operating Temperature - Minimum: 0 Degrees F
• Gasket Material: EPDM
• Seat Material: Graphite-Reinforced PTFE
• Operating Temperature - Maximum: 284 Degrees F
• Stem Material: Stainless Steel
• Ball Material: Stainless Steel
• Rangeability: 500:1
• Manufacturer Series: VG1000
• For Media: Water-Glycol Solution to 50%, Water, Steam
• Valve Style: Mixing
• ANSI Rating: ANSI Leakage Class IV
• Leakage Rate: 1 %
• Port Types Included: Bypass, Control
• Body Material: Brass
• Disk Material: Polyphthalamide Resin
• Includes Characterizing Disk: Disk Included
• Specific Valve Action: Stem Down to Close
• Bypass Coefficient of Volume: 29
• Body Pattern: Three-Way
