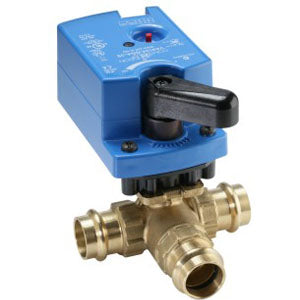

Johnson Controls VG1841BG+9T4AGA Three-Way Brass Trim Ball Valve 24V Floating Non-Spring Return Actuator

Product Description

Johnson Controls presents the VG1841BG+9T4AGA, a high-performance three-way brass trim ball valve designed for effective flow regulation in HVAC systems. Compatible with a range of Johnson Controls electric actuators, this valve is essential for achieving precise temperature control.

• For use in HVAC systems to control hot/chilled water and low-pressure steam.
• Factory or field adaptable to VA9104, M9106, M9109, M9100, VA2202, M9206, M9210 electric actuators.
• Capable of handling 580 psig static pressure.

Product Highlights

Optimal for on/off, floating, or proportional control within Heating, Ventilating, and Air Conditioning systems. The valve's robust forged brass body ensures long-term durability and performance.

Product Information

Standard Information

• Size: 3/4 inch NPT
• Power: 24V
• Flow Capacity: 4.7 Cv

Technical Specifications

• Material: Brass
• Connection Type: Threaded
• Temperature Range: 23° to 203°F
• Actuator Type: VA9104 Non-Spring Return Electric Actuator, Floating Point without Timeout
• Torque: 35 lb-in
• Weight: 5 lbs
