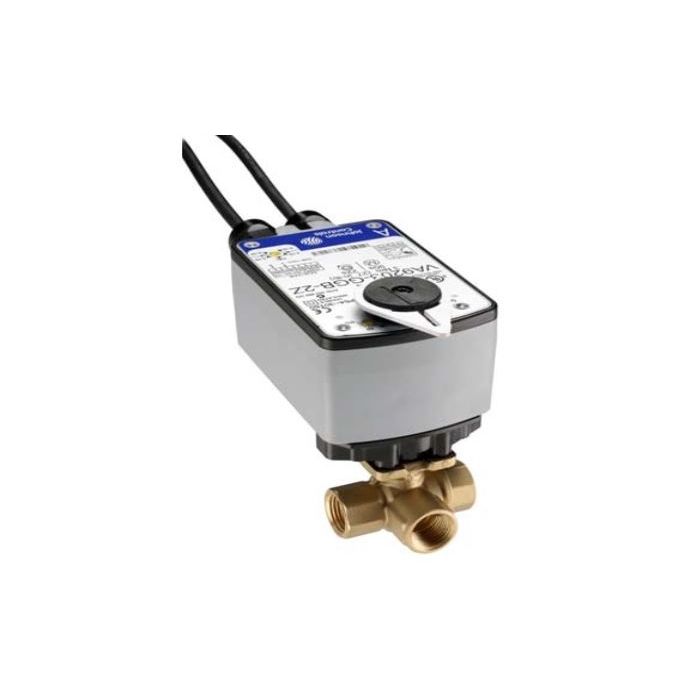

Johnson Controls VG1841AL923BGB Ball Valve Assembly 3 Way 1/2 in.

Product Description

The Johnson Controls VG1841AL+923BGB is a ball valve assembly featuring a three-way configuration with a half-inch inlet. This valve is designed for NPT applications, providing a flow coefficient of 7.4 Cv. The forged brass body ensures strength and durability, while the chrome plated brass ball and nickel plated brass blowout-proof stem provide reliable operation. The unit is compatible with a direct mount electric actuator, offering a 24 VAC control with an on/off operation.

• Maintenance-free design
• Performs without failure in excess of 200,000 full stroke cycles
• Suitable for hot water, chilled water, and glycol solutions

Product Highlights

Designed for long-lasting performance, this valve offers effective control across various applications, ideal for HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1841AL+923BGB

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 5.0 VA Running, 2.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage Of In-Line Port A (Coil) And Linear Of Angle Port B (Bypass)
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
