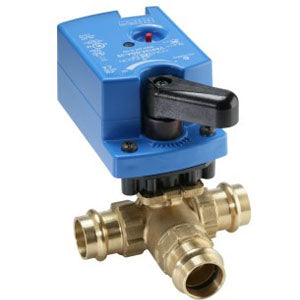

Johnson Controls VG1841AL+9T4AGA Valve Assembly with Non-Spring Return Actuator

Product Description

The Johnson Controls VG1841AL+9T4AGA is a top-tier valve and actuator assembly designed for precise control in HVAC systems. It features the Johnson Controls VG1000 Series Ball Valves paired with the VA9104 Series Actuator.

• Optimally designed for regulating hot or chilled water and low-pressure steam.
• Supports configurations from half an inch to two inches (DN15 to DN50).
• Interface compatible with multiple types of Johnson Controls non-spring and spring return actuators for versatile application.

Product Highlights

This assembly is crucial for on/off, floating, or proportional control in HVAC systems. It offers ease of application with both field and factory mounting options.

Product Information

Standard Information

• Material: High-quality forged brass
• Pressure Rating: Up to 580 psig

Technical Specifications

• Connection Type: Threaded NPT connections ensure secure and reliable fittings.
• Control Type: Suitable for on/off, floating, or proportional control setups.
• Electrical Specifications: 24 VAC +25%/-20%, Class 2, SELV compatible
• Weather Shield: Optional for field assembly (Model: M9000-341)
• Electrical Connections: Convenient screw terminals for easy installation
• Close Off Pressure: 200 PSID, ensuring robust performance under varying pressure conditions
• Actuator Configuration: Compatible with VA9104, M9106, M9109, M9100, VA2202, M9206, and M9210 series
