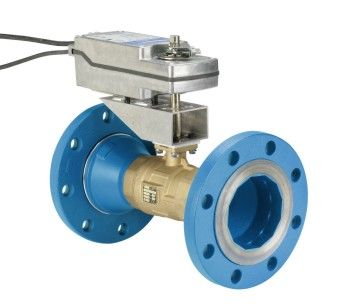

Johnson Controls VG12A5GU+94NGGC Ball Valve Assembly, 2 Way, 2-1/2 in

Product Description

The Johnson Controls VG12A5GU+94NGGC is a two-way ball valve assembly designed for HVAC applications. This valve is made with a brass body and features a stainless steel ball and stem. It operates with an electric actuator, providing a reliable solution for controlling flow in various systems.

• Flanged connection for easy installation
• Maintenance-free design ensures longevity
• Rated for 117 Cv capacity

Product Highlights

This valve assembly operates under a range of conditions suitable for hot and chilled water systems, 50/50 glycol solutions, and saturated steam up to 25 psig.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5GU+94NGGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and 25 psig saturated steam
• Close-Off Pressure: 100 psig
• Flow Characteristic: Equal percentage
• Power Consumption: 15.5 VA running, 7.7 VA holding
• Auxiliary Switches: 2
• Operating Conditions: -40 °F to 133 °F (-40 °C to 55 °C)
• Electrical Connection: 48 inches halogen-free cable with 18 AWG wire leads
