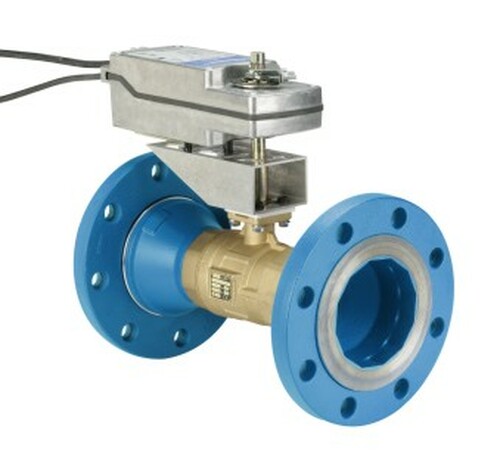

Johnson Controls VG12A5GU+924GGC Ball Valve Assembly 2 Way 2-1/2 in

Product Description

The Johnson Controls VG12A5GU+924GGC is a two-way ball valve assembly with a connection size of two and a half inches. This valve is designed for various HVAC applications. Its direct mount electric actuator operates on 24 VAC and features proportional control with a 0 to 10 VDC signal. The valve body is made of brass and is complemented by a stainless steel ball and stem.

• Maintenance-free design with over 200,000 full stroke cycles.
• Capable of tight shutoff in HVAC systems.
• Handles hot water, chilled water, and glycol solutions.

Product Highlights

This product is ideal for HVAC professionals needing reliable and efficient control of fluid systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5GU+924GGC

Technical Specifications

• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F To 122 F (-20 C To 50 C)
• Close-Off Pressure: 100 psig
• Power Consumption: 7.5 VA
• Auxiliary Switches: 2 x SPDT
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution And 25 psig Saturated Steam
• Electrical Connection: 1/4 in. Spade Terminals With Pluggable 3-Terminal Blocks
• Housing: NEMA 2, IP42
