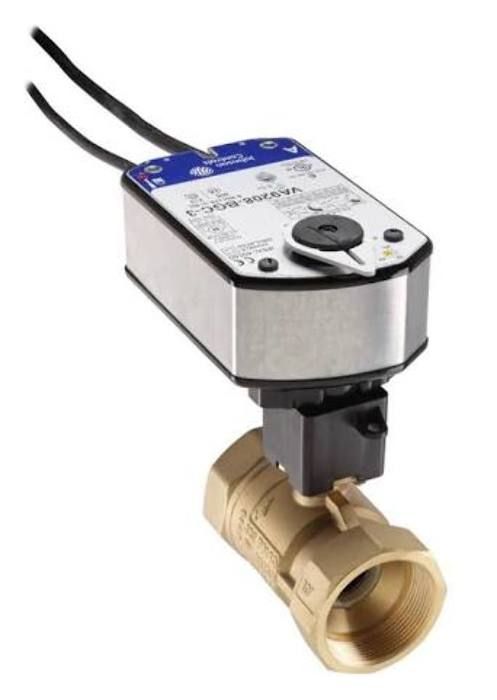

Johnson Controls VG1245FRH928AGA Ball Valve Assembly, 2 Way, 2 in.

Product Description

The Johnson Controls VG1245FRH928AGA is a two-way ball valve assembly designed for efficient flow control. This valve features a forged brass body, stainless steel ball, and a blowout-proof stem, ensuring durability. It operates with a direct mount electric actuator and provides a spring return mechanism.

• NPT connection with a flow coefficient of 29.2 Cv
• Maintenance-free design for long-lasting performance
• Suitable for hot water, chilled water, and glycol solutions

Product Highlights

This ball valve assembly performs reliably without failure, capable of exceeding 200,000 full stroke cycles even in challenging conditions. It has a rangeability of 500:1, ensuring precise control under a variety of load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245FRH928AGA

Technical Specifications

• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 120 inches, 19 AWG plenum cable with integral 3/8 inches FMC connectors
• Housing Rating: NEMA 2, IP54
• Service Type: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam for HVAC Systems
