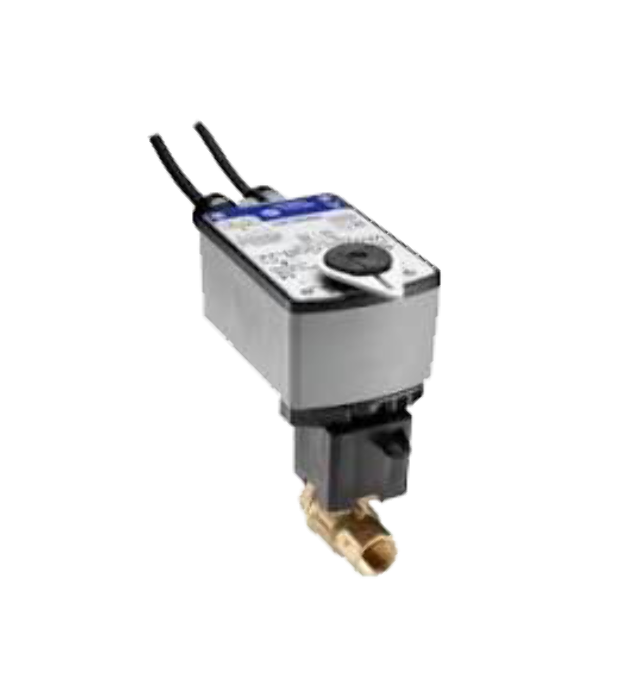

Johnson Controls VG1245CLH923BGA Ball Valve Assembly 2 Way 1 in.

Product Description

The Johnson Controls VG1245CLH923BGA is a two-way ball valve assembly designed for reliable performance in various HVAC applications. This valve features a forged brass body, a stainless steel ball, and a blowout-proof stem. It is equipped with a direct mount electric actuator and operates at 24 VAC with a spring return of twenty-seven lb-in.

• Maintenance-free design ensures extended lifespan.
• Proven to perform over two hundred thousand full stroke cycles in iron-oxide contaminated water.
• Offers a five hundred to one rangeability for precise control.

Product Highlights

This valve assembly is suitable for hot water and chilled water systems, as well as glycol solutions up to fifteen psig saturated steam.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245CLH923BGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Power Consumption: 5.0 VA Running, 2.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
