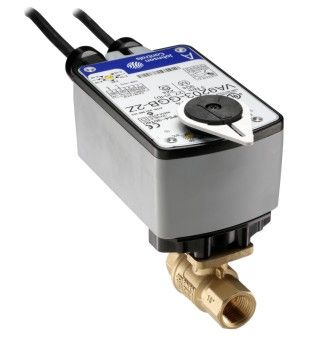

Johnson Controls VG1245CL 943BUB Ball Valve Assembly 2 Way 1 in.

Product Description

The Johnson Controls VG1245CL+943BUB is a two-way ball valve assembly designed for HVAC control systems. It features a one-inch size and is built for durability and reliability.

• NPT connection with a Cv rating of 7.4
• Forged brass body and stainless steel ball for enhanced strength
• Direct mount electric actuator with a spring return mechanism

Product Highlights

This valve performs well in hot water, chilled water, and glycol solutions, making it effective for various HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245CL+943BUB
• Minimum Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, Glycol Solution, and Saturated Steam up to 15 psig
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 0.06 Amp Running, 0.02 Amp Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 140 F
• Electrical Connections: 48 in. 18 AWG Appliance Cables with Integral 3/8 in. FMC Connectors
