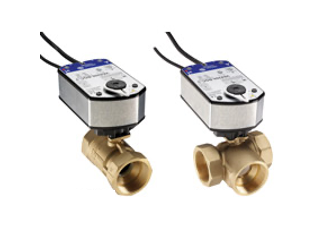

Johnson Controls VG1245BGH943GGB Ball Valve Assembly, 2 Way, 3/4 in. Replacement MPN

Product Description

The Johnson Controls VG1245BGH943GGB is a two-way ball valve assembly suitable for various HVAC applications. This valve is designed to handle hot water, chilled water, and a fifty-fifty glycol solution effectively.

• Maintenance-free design ensures lasting reliability.
• Can perform over 200,000 full stroke cycles.
• Equipped with a direct mount electric actuator.

Product Highlights

This valve assembly features a forged brass body and a stainless steel ball, which provides durability in demanding environments. It has a spring return mechanism with a torque of twenty-seven pound-inches and operates at twenty-four volts alternating current with zero to ten volts direct current proportional control.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BGH943GGB

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam for HVAC Systems
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 5.1 VA Running, 2.8 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22°F To 140°F (-30°C To 60°C)
• Electrical Connection: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
