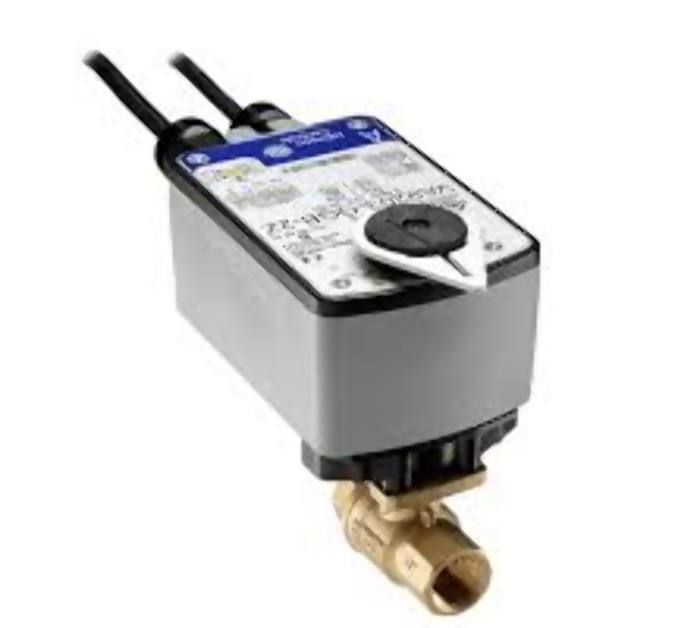

Johnson Controls VG1245BG Ball Valve Assembly 24V 2 Way 3/4 in.

Product Description

The Johnson Controls VG1245BG+943AGA is a two-way ball valve assembly designed for efficient flow control. This assembly features a three-fourth inch connection, making it suitable for various HVAC applications. The valve has a maintenance-free design and can perform without failure for over two hundred thousand full stroke cycles, even in contaminated water. This product is ideal for those looking for reliability and durability in their HVAC systems.

• NPT connection with a four point seven Cv rating.
• Forged brass body and stainless steel ball ensure longevity.
• Direct mount electric actuator with 24 VAC operation.

Product Highlights

This ball valve assembly offers a spring return option with a torque of twenty-seven lb-in and operates within a range of -22°F to 140°F, suitable for hot water, chilled water, and glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+943AGA

Technical Specifications

• Power Consumption: 5.1 VA running, 2.8 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Electrical Connections: 120 in. 19 AWG plenum cable with integral 3/8 in. FMC connectors
• Operating Conditions: -22°F to 140°F (-30°C to 60°C)
• Service: Hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam for HVAC systems
• Housing: NEMA 2, IP54
