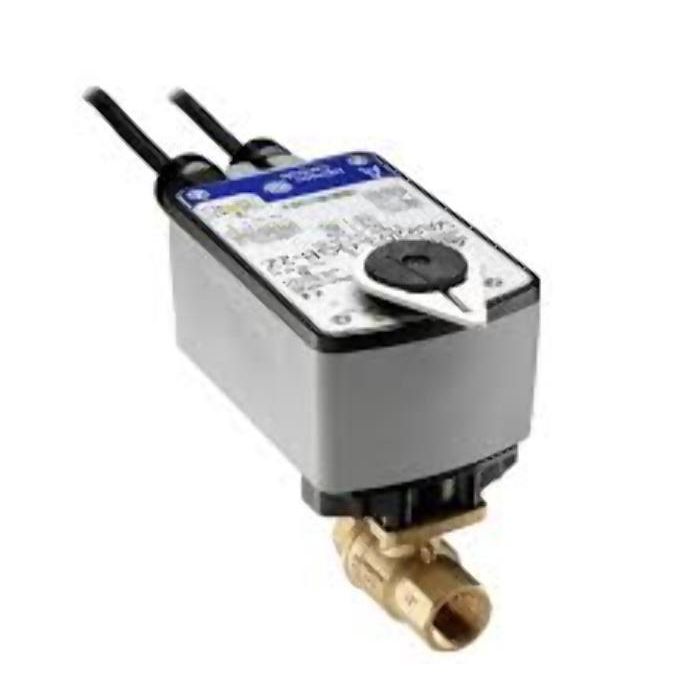

Johnson Controls VG1245BG 2 Way Ball Valve Assembly 3/4 in. Replacement VG1245BG+923BUB

Product Description

The Johnson Controls VG1245BG+923BUB is a high-quality 2-way ball valve assembly. This valve features a three-quarter inch connection and is designed for effective control in various HVAC systems.

• Maintenance-free design
• Durable forged brass body
• Direct mount electric actuator

Product Highlights

This valve assembly operates efficiently in systems requiring precise flow control with minimal maintenance.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+923BUB

Technical Specifications

• Power Consumption: 0.06 Amp Running, 0.02 Amp Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Auxiliary Switch: 1 x SPDT
• Housing: NEMA 2, IP54
