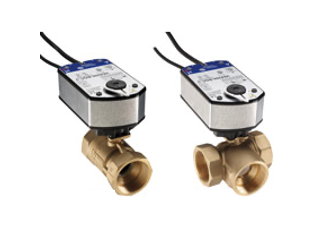

Johnson Controls VG1241ES+948GGA Ball Valve Assembly 2 Way 1-1/2 in.

Product Description

The Johnson Controls VG1241ES+948GGA is a reliable 2-way ball valve assembly made for HVAC applications. This valve allows for efficient control of fluid flow in both hot and chilled water systems. Its maintenance-free design ensures long-term performance even in challenging environments.

• Maintenance-Free Design
• Handles Both Hot and Chilled Water Applications
• Proportional Control with Direct Mount Electric Actuator

Product Highlights

This valve has a forged brass body and a chrome-plated brass ball. It features a nickel-plated brass blowout-proof stem for enhanced durability. The valve supports a wide fluid temperature range of twenty-three degrees Fahrenheit to two hundred three degrees Fahrenheit.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241ES+948GGA

Technical Specifications

• Flow Coefficient (Cv): 46.8
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Flow Characteristic: Equal Percentage
• Housing: NEMA 2, IP54
