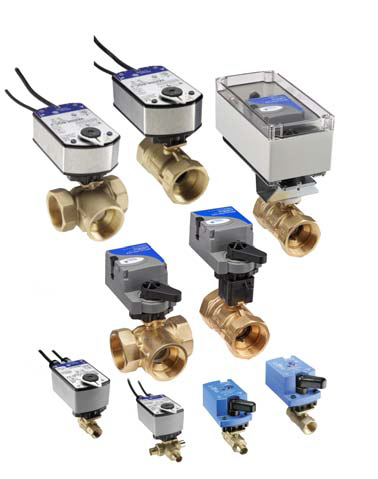

Johnson Controls VG1241DR+938GGC Ball Valve Assembly 2 Way 1-1/4 in.

Product Description

The Johnson Controls VG1241DR+938GGC is a two-way ball valve assembly designed for efficient control of chilled and hot water applications. It features a forged brass body with a durable chrome-plated ball, ensuring a long service life in demanding conditions.

• Maintenance-free design for reliable operation
• Operates effectively in water with iron-oxide contamination
• Fluids temperature range of 23°F to 203°F

Product Highlights

This valve supports a direct mount electric actuator, ideal for HVAC systems, ensuring accurate fluid control under all load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241DR+938GGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40°F to 140°F (-40°C to 60°C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
