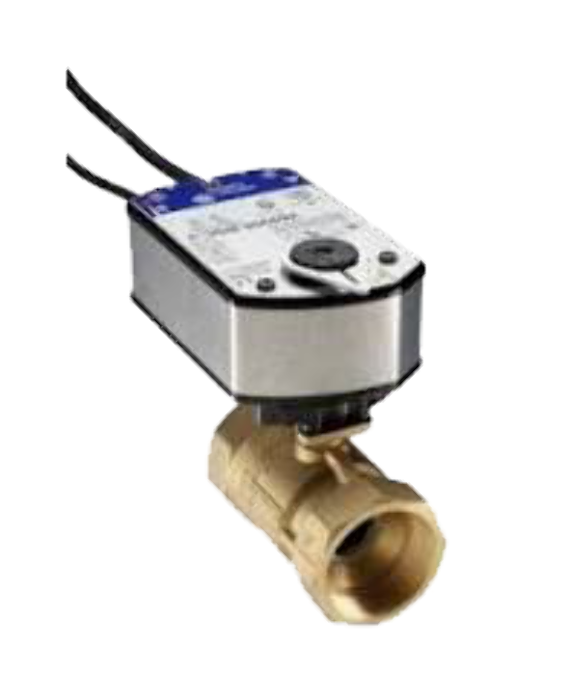

Johnson Controls VG1241DP+958BGC Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Johnson Controls VG1241DP+958BGC is a ball valve assembly designed for two-way applications. This assembly is a quarter-turn valve system that provides reliable fluid control in various conditions. It features a forged brass body and is suitable for both chilled water and hot water applications. Common usage includes HVAC systems where precise flow control is essential.

• Maintenance-free design guarantees performance over 200,000 full stroke cycles.
• Chrome-plated brass ball and stem assembly enhance durability.
• Operates efficiently in fluid temperature ranges from twenty-three degrees Fahrenheit to two hundred three degrees Fahrenheit.

Product Highlights

This ball valve assembly is engineered for robust performance under demanding conditions and is suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Min Order Quantity: 1

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 6.1 VA Running, 1.2 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
