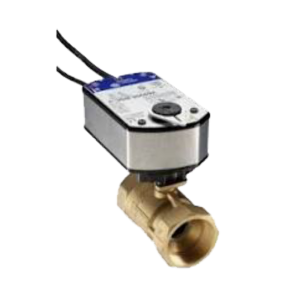

Johnson Controls VG1241DN928AGA Ball Valve Assembly 2 Way 1-1/4 in.

Product Description

The Johnson Controls VG1241DN928AGA is a two-way ball valve assembly suitable for HVAC applications. This assembly measures one and one-quarter inches and is designed to manage both chilled and hot water. It functions effectively with fluid temperatures ranging from twenty-three degrees Fahrenheit to two hundred degrees Fahrenheit.

• Maintenance-free design
• Handles hot and chilled water applications
• Durable forged brass construction

Product Highlights

This product is designed for reliability and efficiency in HVAC systems. With a forged brass body and chrome-plated components, it ensures long-lasting performance.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241DN928AGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F
• Electrical Connection: 120 in. 19 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
