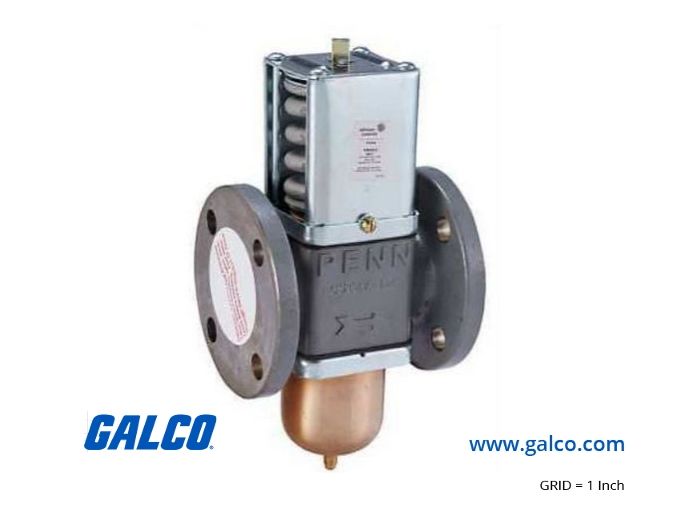

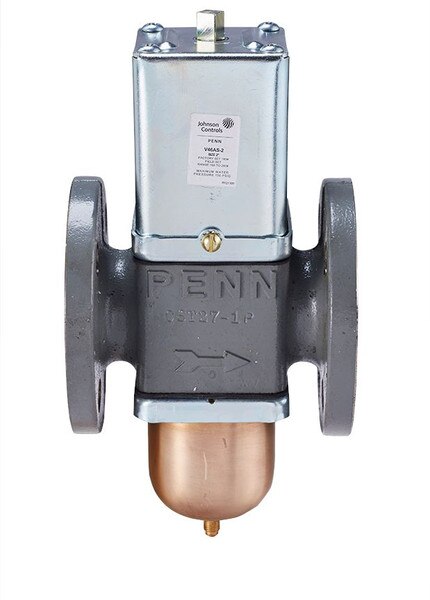

Johnson Controls V46BT-3 Maritime Water Regulating Valve

Product Description

The Johnson Controls V46BT-3 is a pressure-actuated modulating valve used in both open and closed systems. This valve is suitable for regulating the flow of water or glycol in water-cooled condensers within refrigeration systems. It features a design that opens with an increase in pressure, tailored for maritime applications with a nickel copper (monel) valve trim that supports corrosive coolants.

• Capable of disassembly and reassembly without removal from the refrigeration system.
• Monel valve trim for enhanced durability against corrosive environments.
• Optimized for use with non-corrosive refrigerants.

Product Highlights

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V46BT-3

Technical Specifications

• Manufacturer Part Number: V46BT-3
• Product Series: V46
• Family Series: Johnson Controls HVAC Valves, V46 Series
• Description: Maritime Water Reg Valve
• Pipe Size: 2.5 inches
• Body Style: Two-Way
• Min Opening Point: 70 psi
• Max Opening Point: 170 psi
• Application: Non-Corrosive Refrigerants
• Material: Bronze
• Internal Material: Monel
• Inlet and Outlet: Flange - ASME
• Connection: Capillary with Sweat
• Product Type: Valve
• Connection Type: Flanged x Flanged
