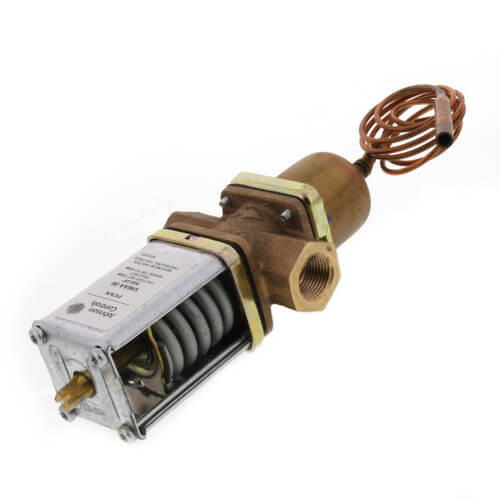

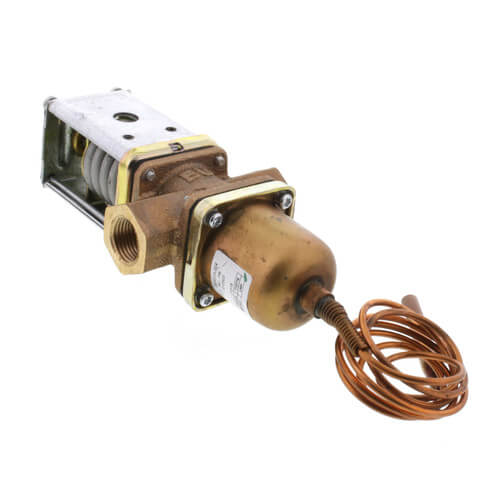

Johnson Controls V46AA-56C Commercial V46 Series Pressure-Actuated Water-Regulating Valve 100-300 PSI

Product Description

The Johnson Controls V46AA-56C is a pressure-actuated water-regulating valve designed for water systems operating within a range of one hundred to three hundred PSI. This valve is suitable for various HVAC applications, particularly in refrigeration systems. The V46 series includes both direct acting and reverse acting valves. Direct-acting valves are often used in water-cooled condensers for regulating refrigerant head pressure. Reverse-acting valves find application in bypass service for refrigeration systems and heat pumps.

• Pressure range of one hundred to three hundred PSI
• Constructed with corrosion-resistant materials
• Features accessible range spring for manual flushing

Product Highlights

The V46 valves are reliable for regulating water pressure in HVAC systems. They maintain consistent performance against pressure changes, ensuring the longevity of your system.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V46AA-56C

Technical Specifications

• Weight: 1.79 pounds
• Pressure Range: 100-300 PSI
• Product Type: Valve
• Connection Type: Threaded
• Shipping Dimensions: 10.65 inches (Depth) x 3.6 inches (Width) x 2.3 inches (Height)
• Maximum Pressure: 300 PSI
• Corrosive Applications: Available for ammonia refrigerant
