Johnson Controls TEC3323-14-000 TEC3000 Thermostat

Product Description

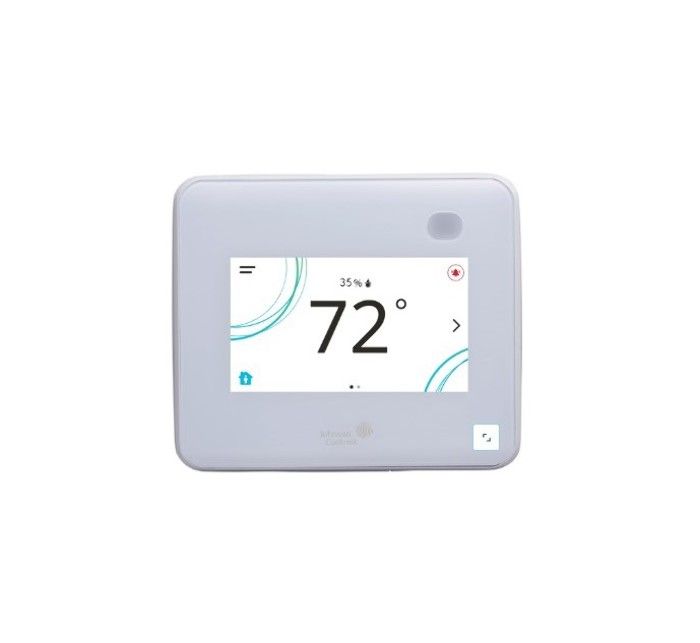

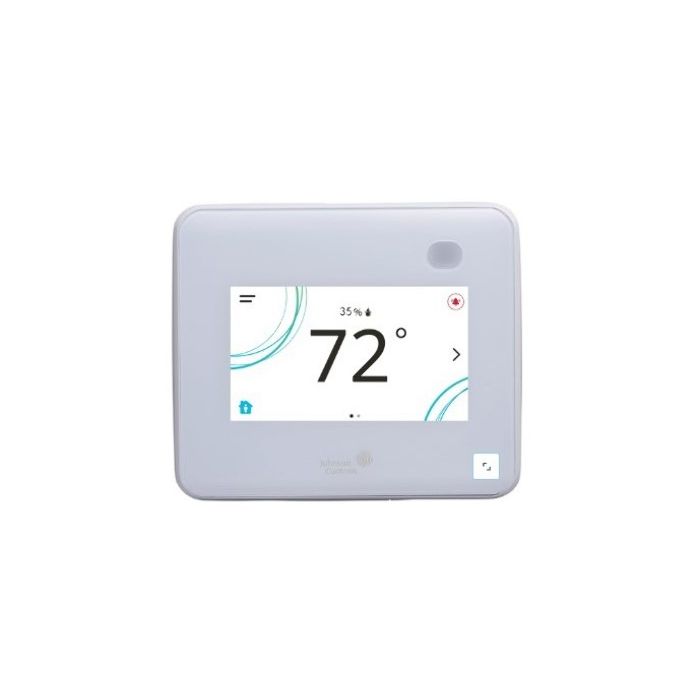

The Johnson Controls TEC3323-14-000 is a stand-alone thermostat designed for precise control in various heating and cooling applications. This thermostat is user-friendly and ideal for fan coil units and variable air volume systems.

• Supports occupancy sensor and dehumidification functions.
• Compatible with BACnet MS/TP or N2 networks.
• Features a touchscreen display for easy operation.

Product Highlights

Utilized in hydronic heating systems, the TEC3323-14-000 thermostat allows for different control configurations including on/off, floating, and proportional adjustments. It is capable of handling different types of heating equipment, which makes it versatile for commercial and residential applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: TEC3323-14-000

Technical Specifications

• Operating Conditions: 32°F to 122°F (0°C to 50°C)
• Power Requirements: 19 to 30 VAC, 4 VA, 50/60 Hz
• Control Output: 0 to 10 VDC proportional for fan coil and zoning
• Dimension (LxWxH): 5.625 inches x 4.71875 inches x 1.40625 inches
• Weight: 0.77 lbs
• Color: White
• Type: Controller
