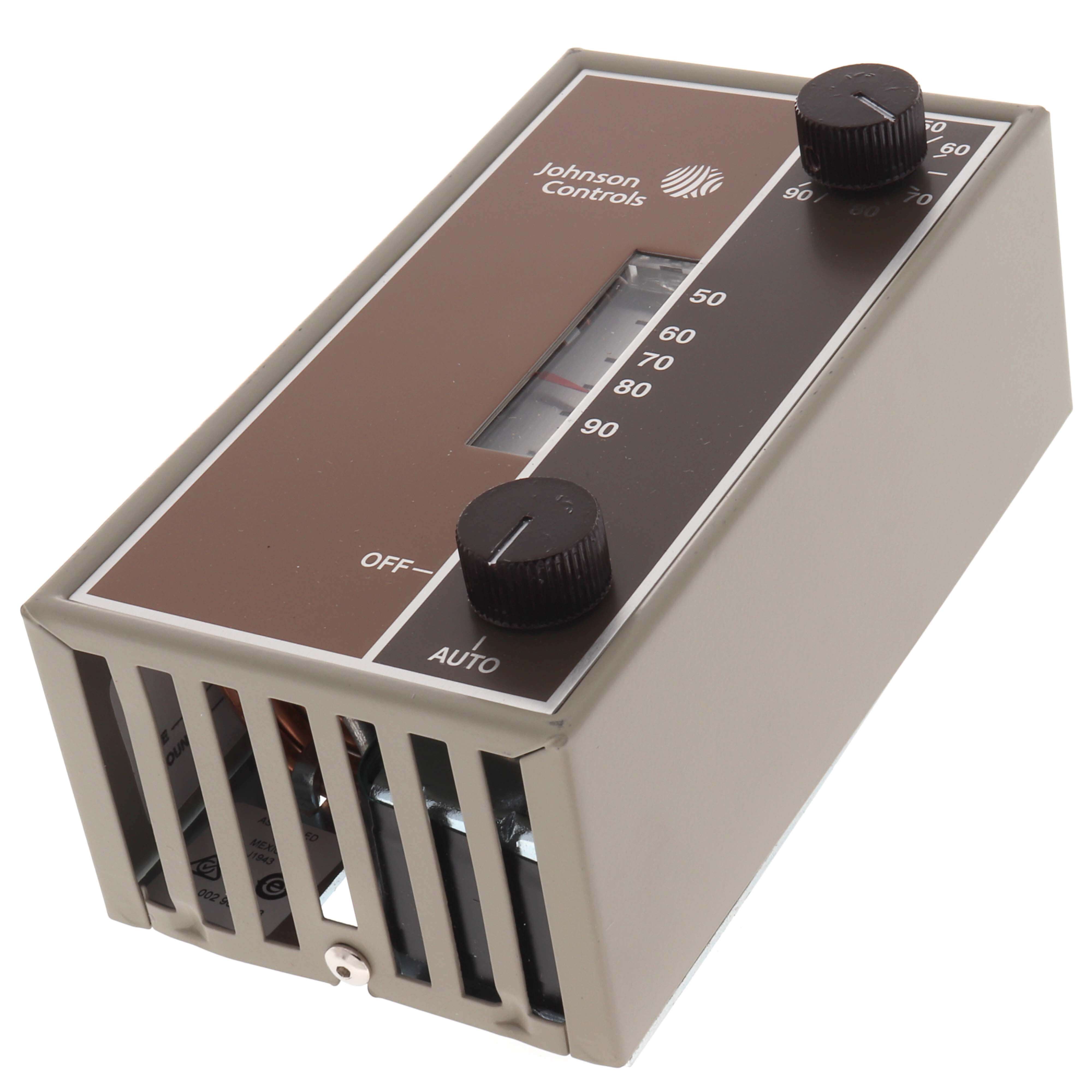

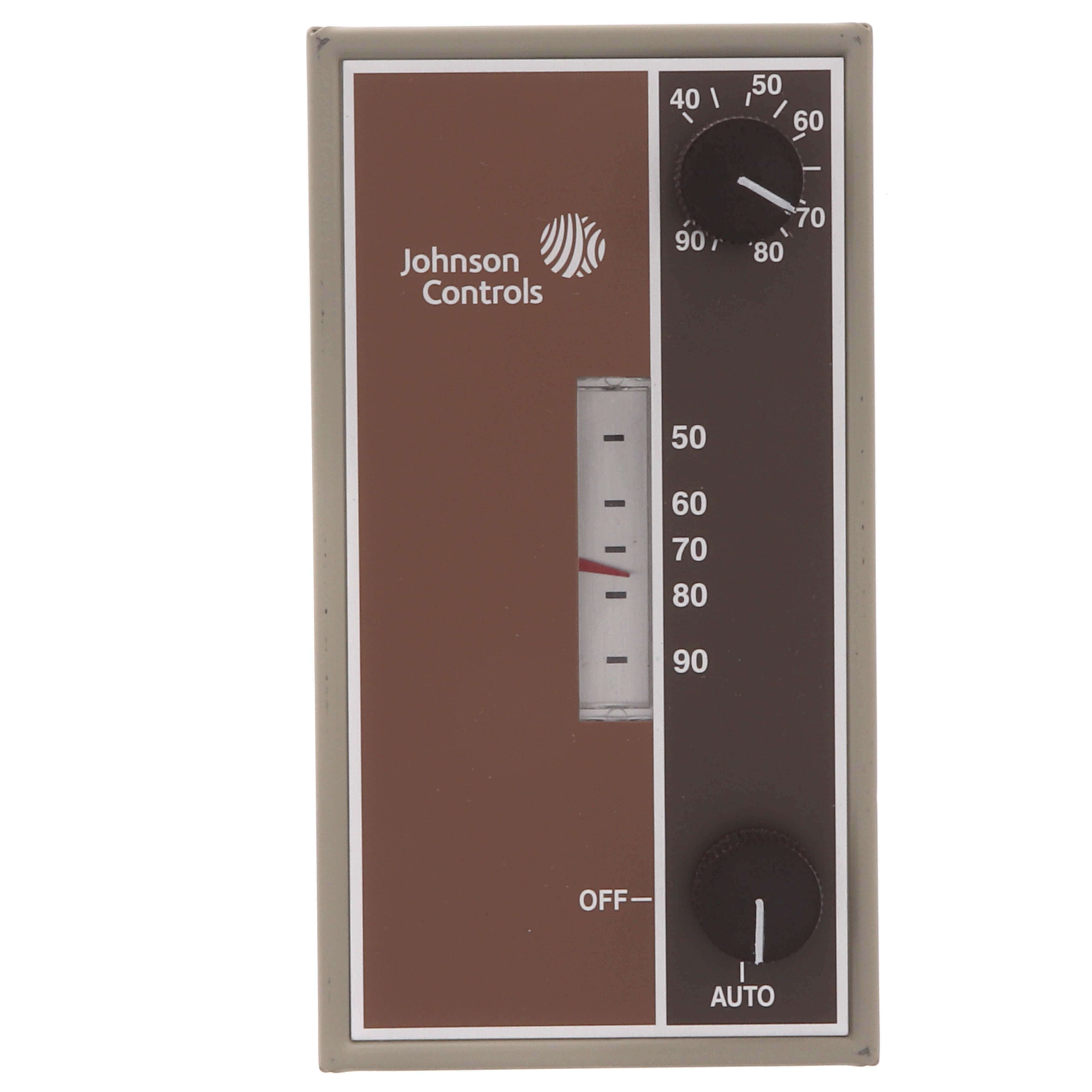

Johnson Controls T22AAA-1C Penn Series T22 Line Voltage Wall Thermostat, Heating, Knob Adjustment, SPST Application, Off-Auto Switch, 1°C Differential

Product Description

The Johnson Controls T22AAA-1C Penn Series T22 Line Voltage Wall Thermostat features heating functionality, knob adjustment, SPST application, off-auto switch, and a 1°C differential. Suitable for residential, commercial, or industrial heating or year-round air conditioning. Heat or cold anticipators are not required.

• Heating
• Knob Adjustment
• SPST Application
• Off-Auto Switch
• 1°C Differential

Product Highlights

The T22AAA-1C thermostat provides line voltage control with knob adjustment and an off-auto switch. It ensures close temperature control without needing anticipators.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: T22AAA-1C
• Country of Origin: Mexico

Technical Specifications

• Application: Heating
• Adjustment: Knob
• Switch: Off-Auto
• Differential: 1 Degrees F
• Amps (120V): 6
• Amps (240V): 3
• Item [Specifications]: Line Volt Mechanical Tstat
• Depth [Specifications]: 2 19/32 in
• Width [Specifications]: 2 25/32 in
• Height [Specifications]: 5 3/16 in
• Stages [Specifications]: 1H
• Voltage [Specifications]: 120/208/240/277VAC
• Standards [Specifications]: UL E6688
• Sensor Type [Specifications]: Temperature
• Switch Type [Specifications]: SPST
• Contact Type [Specifications]: Snap Action
• Display Type [Specifications]: Analog
• Fan Settings [Specifications]: No Fan Setting
• For Use With [Specifications]: Suitable for Temperature Control in Heating, Ventilating, Air Conditioning, Refrigeration Applications
• Control Range [Specifications]: 40 Degrees to 90 Degrees F
• Housing Material [Specifications]: Steel
• Mounting Type [Specifications]: Vertical
• Overall Depth [Specifications]: 2 5/8 in
• Overall Width [Specifications]: 2 13/16 in
• Switch Action [Specifications]: Open on Rise
• Contact Rating [Specifications]: 120V AC, 208V AC, 240V AC, 277V AC
• Enclosure Type [Specifications]: Steel
• Overall Height [Specifications]: 5 3/16 in
• Number of Poles [Specifications]: 1
• System Settings [Specifications]: On-Off
• Thermostat Item [Specifications]: Line Voltage Mechanical Thermostat
• Switch Positions [Specifications]: Auto-Off
• Differential Type [Specifications]: Fixed
• Mounting Location [Specifications]: wall
• Pilot Duty Rating [Specifications]: 125 VA
• Temperature Scale [Specifications]: Fahrenheit/Celsius
• Mounting Direction [Specifications]: Vertical
• Number of Switches [Specifications]: 1
• Switch Type/Action [Specifications]: SPST, Open on Rise
• Thermostat Voltage [Specifications]: 24 to 277V AC
• Temperature Readout [Specifications]: No
• Includes Positive Off [Specifications]: Yes
• Inductive Amps @ 120V [Specifications]: 6 A
• Inductive Amps @ 240V [Specifications]: 3 A
• Compatible System Type [Specifications]: Electric Heating
• Number of Relay Inputs [Specifications]: 0
• Thermostat Switch Type [Specifications]: SPST
• Full Load Amps @ 120VAC [Specifications]: 15 A
• Full Load Amps @ 240VAC [Specifications]: 3 A
• Number of Relay Outputs [Specifications]: 0
• Thermostat Programmable [Specifications]: No
• Full Load Amps @ 120V AC [Specifications]: 6 A
• Full Load Amps @ 240V AC [Specifications]: 3 A
• Locked Rotor Amps @ 120V [Specifications]: 36 A
• Locked Rotor Amps @ 240V [Specifications]: 18 A
• Number of Heating Stages [Specifications]: 1
• Pilot Duty Contacts (VA) [Specifications]: 125 VA
• Remote Control Functions [Specifications]: No Remote Control Included
• Temperature Differential [Specifications]: 1 Degrees F
• Thermostat Control Range [Specifications]: 40 Degrees to 90 Degrees F
• Remote Sensing Capability [Specifications]: No
• Temperature Control Range [Specifications]: 40 Degrees to 90 Degrees F

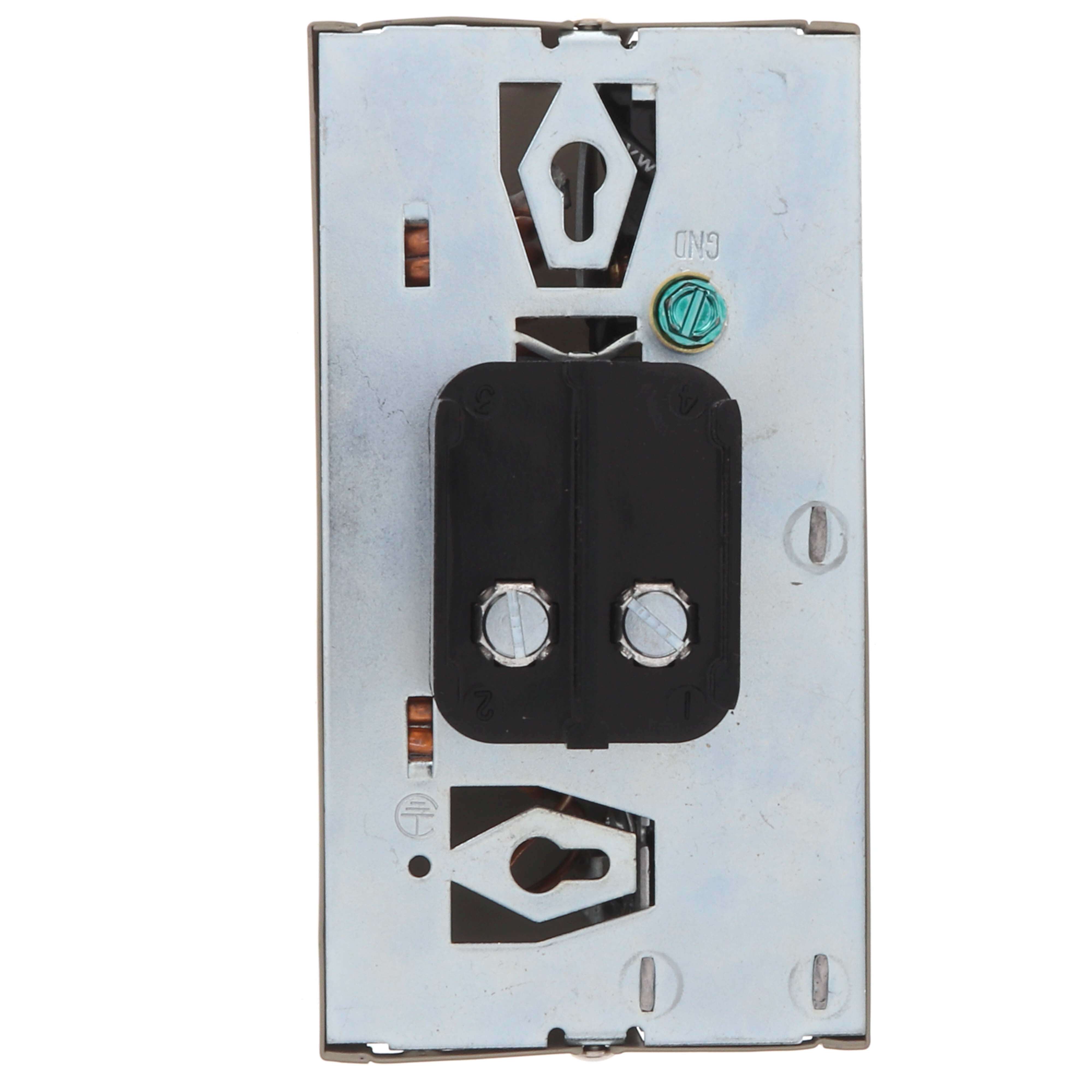

• Electrical Connection Type [Specifications]: Screw Terminals
• Thermostat Heating/Cooling [Specifications]: Heating
• Maximum Control Temperature [Specifications]: 90 Degrees F
• Minimum Control Temperature [Specifications]: 40 Degrees F
• Remote Sensing Bulb Included [Specifications]: No
• Color [Specifications]: Dark Brown/Light Brown
