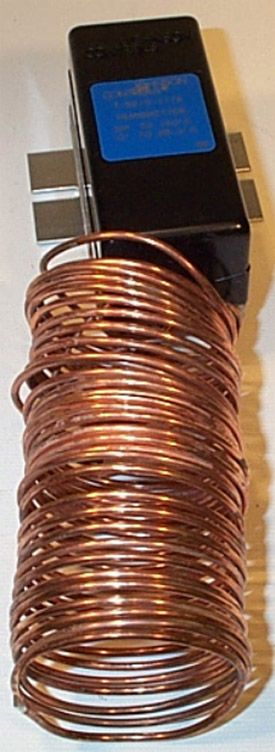

Johnson Controls T-5210-1150 Pneumatic Temperature Transmitter 8' Copper Averaging Element

Product Description

The Johnson Controls T-5210-1150 is a pneumatic temperature transmitter designed for precise temperature regulation in HVAC systems. It features an 8-foot copper averaging element and a 1-foot copper capillary. The device operates within a temperature range of 20 to 120 degrees Fahrenheit, converting temperature measurements to air pressure signals.

• Reliable temperature measurement and air signal transmission.
• Compatible with various pneumatic receiver and controller types.
• Designed for both commercial and industrial applications.

Product Highlights

This transmitter is ruggedly constructed for reliable use in harsh environments. Its compact design facilitates easy installation in constrained spaces. Detailed technical enhancements include a ball type control port, reinforced lever edges for improved linearity, and a bimetal element to adjust for ambient temperature variations.

Technical Specifications

• Temperature Range: 20 to 120 degrees Fahrenheit
• Element Type: Copper, 8' averaging with 1' capillary
• Compatibility: Can be used as a dew point transmitter with a locally purchased decal.
• Operation: Converts temperature readings into pneumatic air pressure signals.
