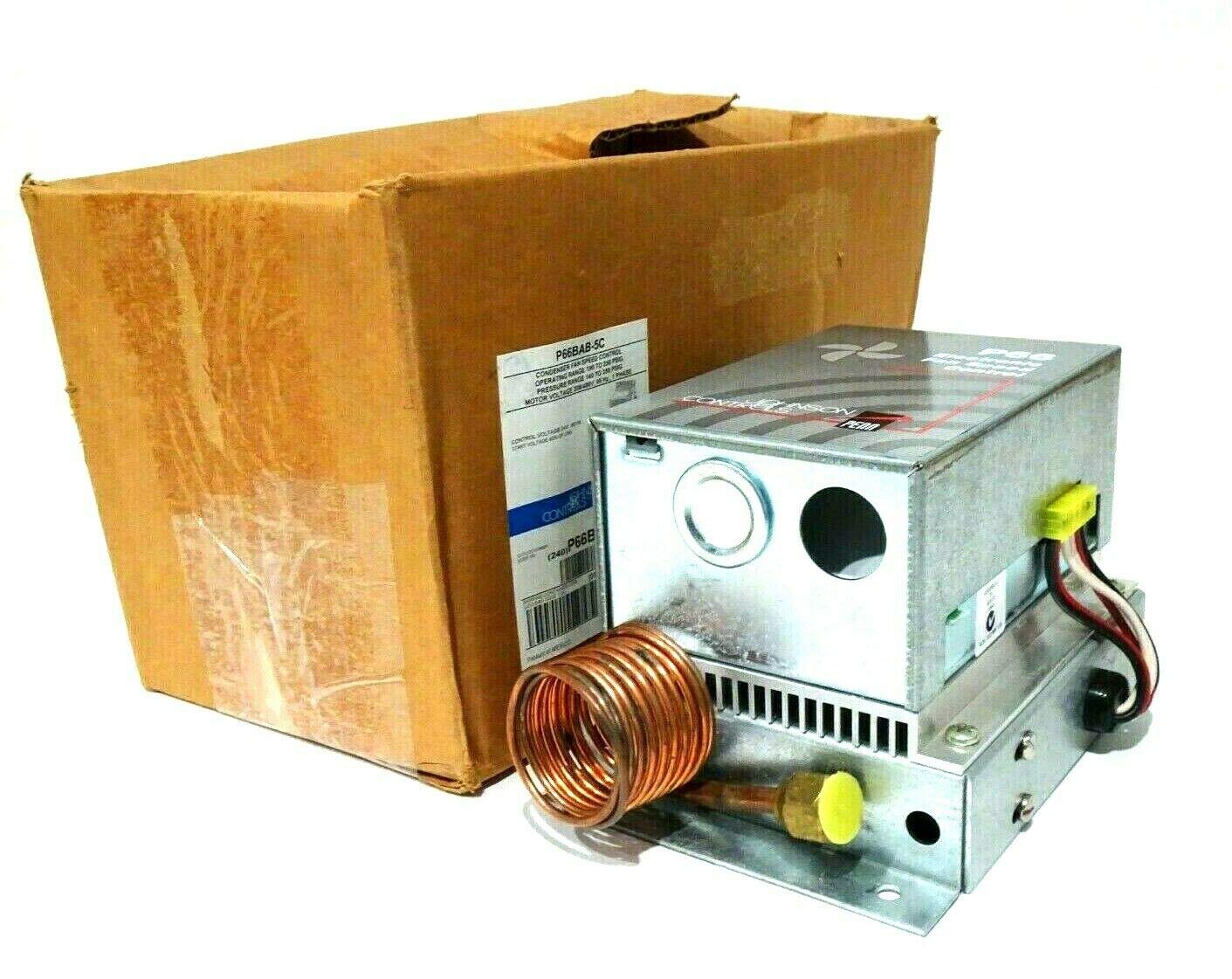

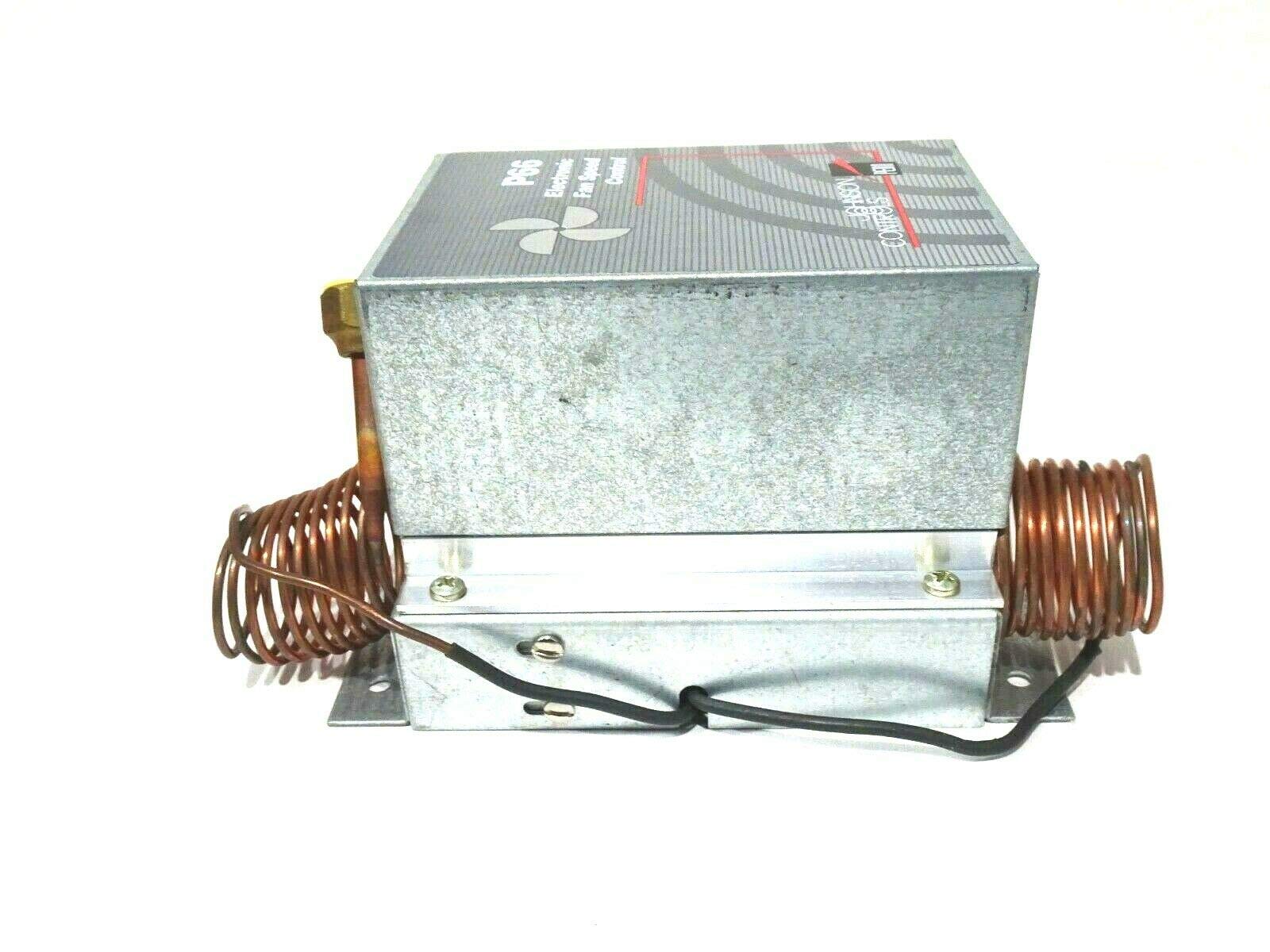

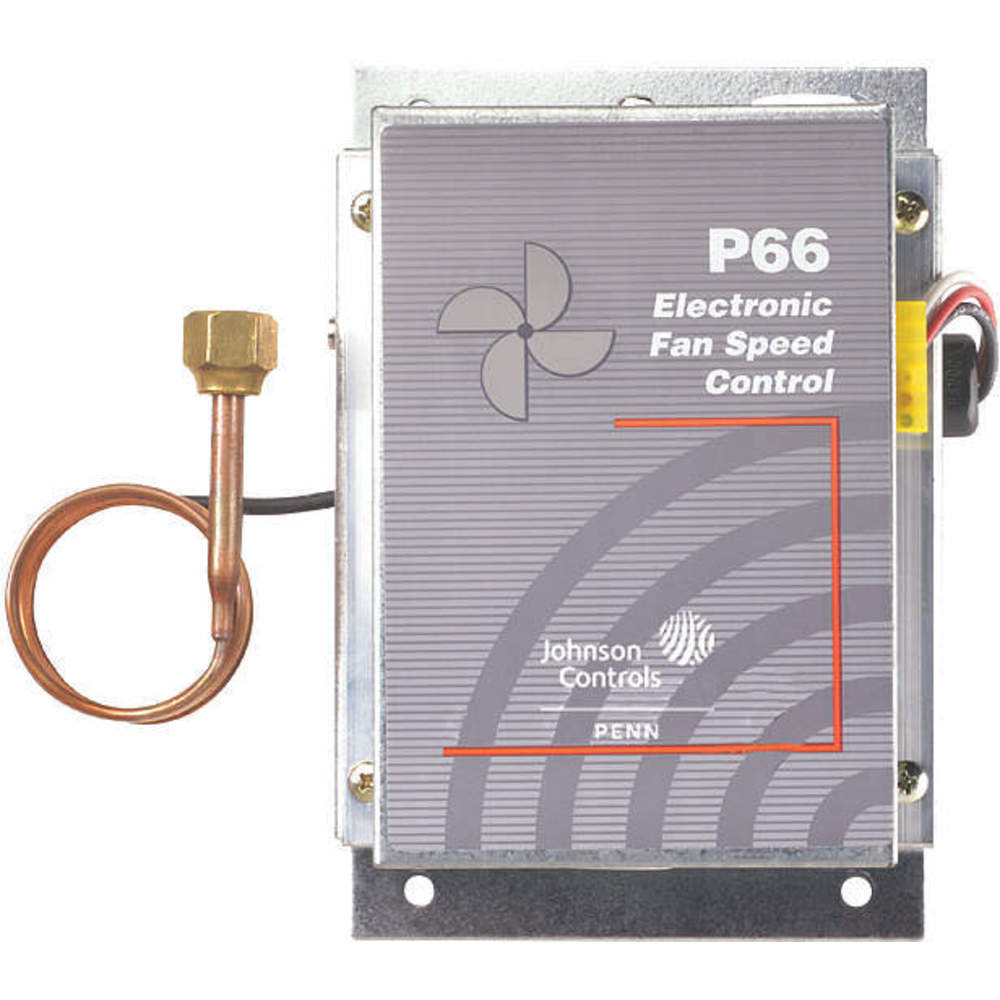

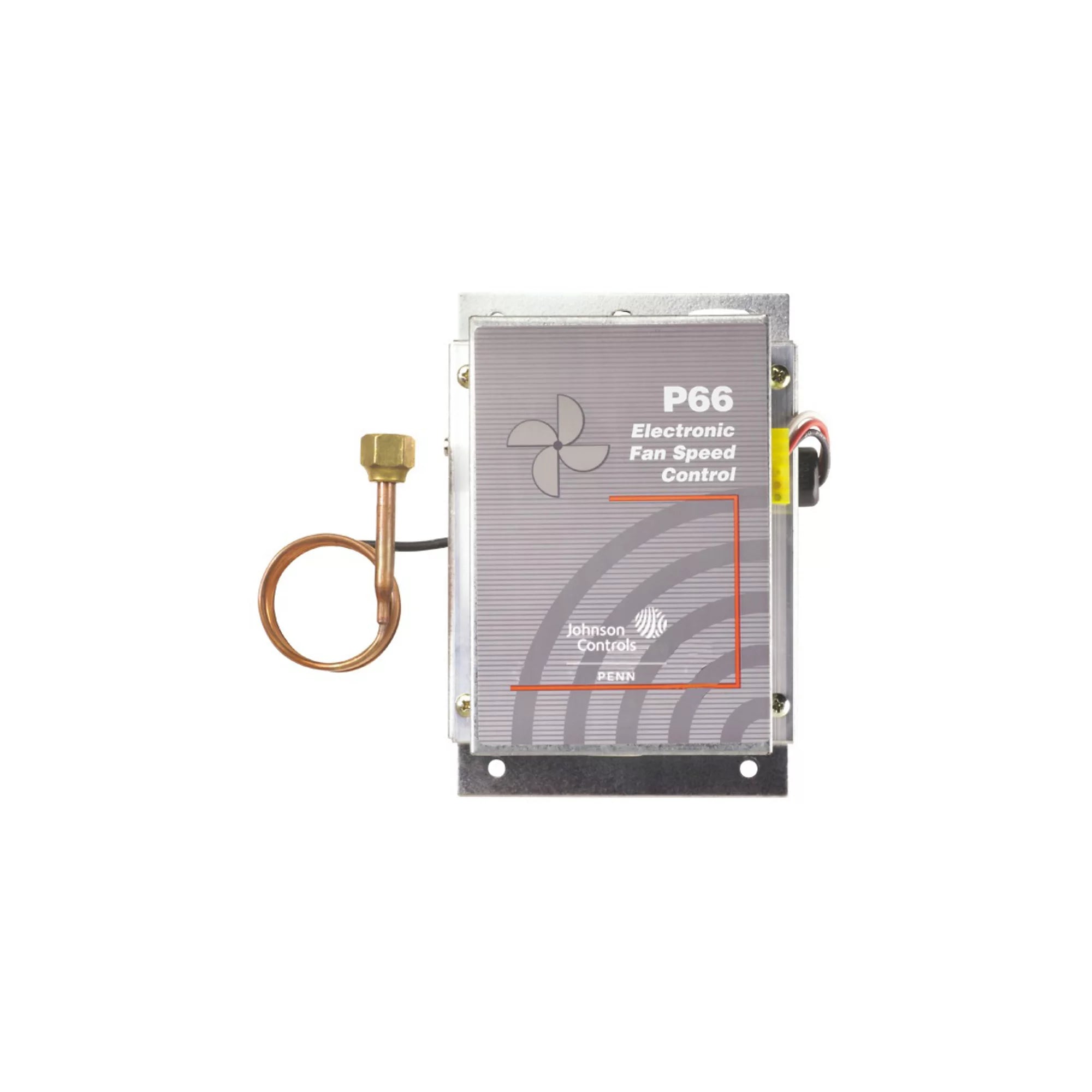

Johnson Controls P66BAB-5C Dual Input Sensor Model Pressure Actuated Motor Speed Controller 190-250 PSIG, 60 inches Capillary

Product Description

The Johnson Controls P66BAB-5C is a refrigerant pressure actuated, electronic motor-speed controller designed for use with single-phase permanent split-capacitor motors approved for speed control. It provides condenser pressure control by sensing refrigerant pressure and adjusting the condenser fan motor speed. It can be used as an alternative to fan cycling control in HVAC applications.

• Exclusive Johnson Controls/PENN pressure transducer responds quickly to condenser pressure changes.
• Soft start capability provides a smooth fan startup, reducing motor-starting noise.
• Built-in voltage surge protection, Radio Frequency Interference (RFI) suppression, and ground terminal screw.

Product Highlights

The P66 series electronic fan speed controls are suitable for a wide range of condenser fan motor applications. Available with single or dual inputs for single- or multi-circuited condensers.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: P66BAB-5C
• Country of Origin: Mexico

Technical Specifications

• Brand: Johnson Controls
• Phase: Single
• Operating Range: 190-250 psig
• Capillary Length: 60"
• Product Type: CONTROLLER
• Voltage: 208 to 480VAC
• Controls: Single Stage Condenser Fans
• Pressure: 190 to 250 PSI
• Control Volts: 208-240/277/480VAC
• Housing Material: Galvanized steel
• Mounting Location: Vertical
• Triac Output Amps: 8A @ 208-240, 6.9A @ 277, 4A @ 480
• Construction Material: Metal
• Ambient Temp. Range: -40°C to 54°C
• Item: Condenser Fan Speed Control
• Body Material: Steel
• Condenser Connection: 1/4"
• Contact Form: SPST
• Electrical Connection Type: Quick Connect Terminals
• Frequency: 60 Hz
• Input Sensor Type: Pressure Sensor
• Input Voltage: 208-480V AC
• Maximum Control Pressure Setpoint: 250 psig
• Maximum Input Current: 1A
• Minimum Control Pressure Setpoint: 190 psig
• Mounting Orientation: Vertical
• Nema Rating: 1
• Number Of Inputs: 2 Pressure Sensor
• Number Of Pressure Sensors Included: 2
• Output Current: 8A
• Percentage Of Supply Voltage To Start: 40%
• Series: P66 Series
