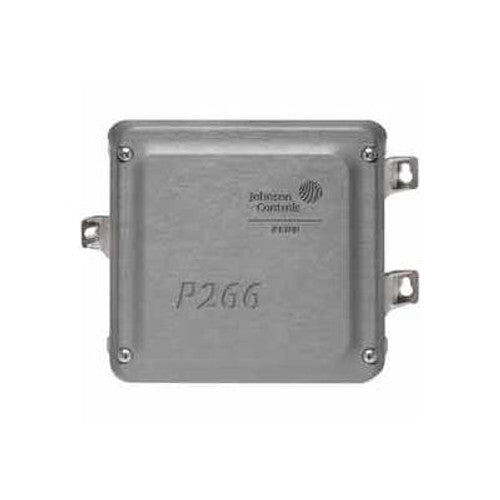

Johnson Controls P66AAB-19C Fan Speed Control 115/145 Range

Product Description

The Johnson Controls P66AAB-19C is a fan speed control designed for small and medium HVAC applications. This unit operates within the pressure range of one hundred and fifteen to one hundred and forty-five psig. It features refrigerant pressure actuation to adjust the fan motor speed automatically based on the sensed pressure.

• Soft start capability for reduced motor noise
• Suitable for various condenser fan motor applications
• Built-in surge protection and RFI suppression

Product Highlights

Ideal for controlling fan speed efficiently, this controller supports single-phase permanent split-capacitor motors approved for speed control. It adapts to changing pressure automatically, improving the performance of refrigeration and HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P66AAB-19C

Technical Specifications

• Operating Range: 115-145 psig
• Start Voltage: 40 volts
• Capillary Length: 60 inches
• Voltage Options: 208-240/277/480 VAC
• Frequency: 60 Hz
• ETR Options: 30 psi or 60 psi
• Enclosure Type: NEMA 1 or NEMA 3R (Rainproof)
• Weight: 6.9996685 lbs
