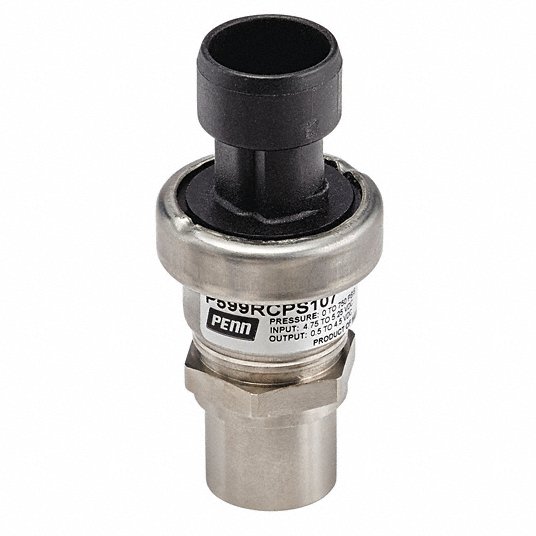

Johnson Controls P599ACPS107C Pressure Transducer 0 to 750 PSI

Product Description

The Johnson Controls P599ACPS107C is an electronic pressure transmitter ideal for air conditioning and refrigeration applications. This pressure transducer provides an analog signal reflecting the measured pressure. It works with various media, including ammonia, featuring durable electronics housed in stainless steel.

• Industrial duty design featuring a sealed structure to prevent performance degradation in harsh conditions.
• Rated for over ten million full-scale pressure cycles without loss of accuracy.
• Compatible with numerous refrigerants, including HCFCs, HFCs, and CO2.

Product Highlights

Reliable and robust design for various pressure measurement tasks.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Model: P599ACPS107C

Technical Specifications

• Pressure Port Type: 1/8 in. - 27 NPT, 1/4 in. SAE 45° flare
• Electrical Connector: AMP, Hirschmann, Packard Metri-Pack
• Units of Measurement: PSI, BARS
• Temperature Range: Compensated -40 to 125°C
• Accuracy: +/- 1.5%
• Output Signal Supply Voltage: Ranges from 0.5 to 33 VDC
• Electrical Protection: Short-circuit and reverse wiring protection
• Maximum Signal Input Current: Up to 24 mA
